Machine Overview

Specs:
X Axis Travel: 42"
Y Axis Travel: 24"
Z Axis Travel: 24"
Rapid Rate X Axis: 1,378 IPM
Rapid Rate Y Axis: 1,378 IPM
Rapid Rate Z Axis: 1,378 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 24 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Table Size: 50" x 24"
Dimensions: 141" x 86" x 109"
Weight: 14,100 LBS
Options:
WinMax CNC
Chip Conveyor
Advanced Verification Graphics
DXF
NC Productivity Package
Ulti Pockets
Insert Pockets
Rigid Tap
Helical Ramp
NC Conversational Merge
Tool And Material Library
Tool Change Optimization
Description:

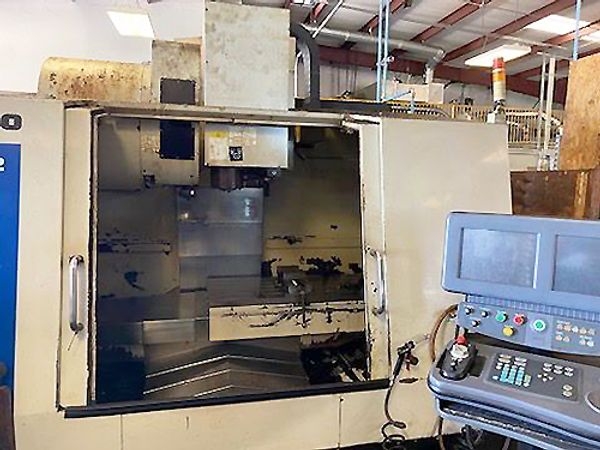

This 2012 HURCO VMX42 offers a versatile addition to your machining toolkit, complete with a chip conveyor for seamless operation.

Boasting a table size of 50 x 24 inches and a table capacity that can handle up to 3,000 pounds, it is designed for heavy-duty tasks. The machine's X, Y, and Z-axis travel distances measure 42 inches, 24 inches, and 24 inches, respectively, ensuring ample space for diverse machining projects.

The spindle spins at speeds up to 10,000 RPM, accommodating a CAT 40 spindle taper, and is driven by a 24 HP main motor. With a tool changer capacity of 24 stations, this machine supports continuous operation and minimizes downtime during tool swaps. The rapid traverse rates for the X, Y, and Z axes are all set at 1,378 IPM, facilitating swift and smooth transitions during machining operations.

In terms of physical footprint, the dimensions measure 141 x 86 x 106 inches, and it weighs in at 14,100 pounds, confirming its robustness and capability to withstand demanding tasks.

Feature-wise, this machine is equipped with the Hurco Winmax Control, which streamlines CNC operations with user-friendly interfaces. It also integrates Advanced Verification Graphics for visual confirmation of machining paths before execution. Additional tools such as DXF support, NC Productivity Package, Ulti Pockets, and Insert Pockets expand its versatility.

This 2012 HURCO VMX42 is also fitted with Rigid Tap and Helical Ramp functionalities, enhancing its threading and contouring capabilities. The NC Conversational Merge feature allows blending of coded programs with conversational input, while the Tool and Material Library simplifies selecting the right tools for varied jobs.

Finally, Tool Change Optimization is included, designed to reduce cycle times by minimizing tool change duration, thus boosting overall productivity.
