Machine Overview

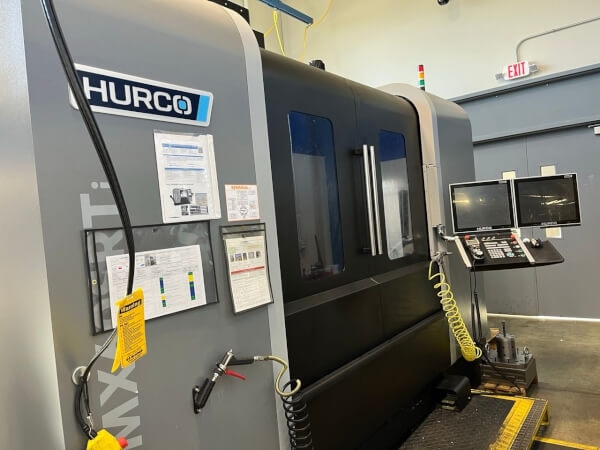

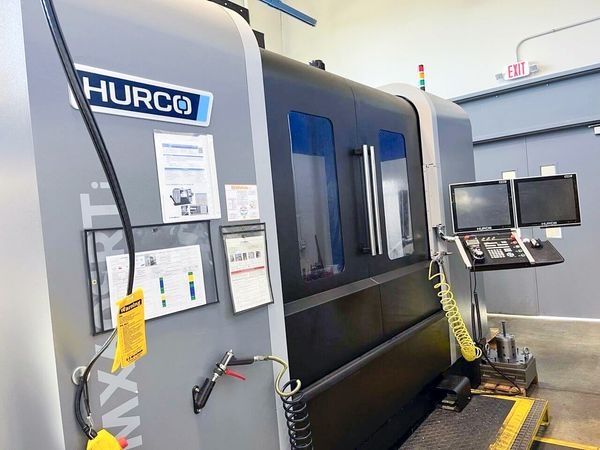

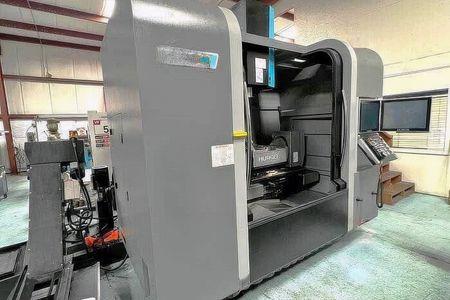

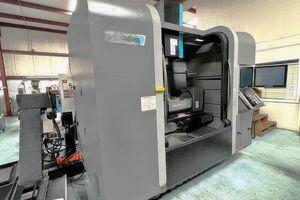

This 2022 HURCO VMX60SRTI is a prime choice for those seeking a high-performance machining center. It comes equipped with valuable options, including a Probe, Coolant Thru Spindle, and 5 Axis capabilities. Such features enhance its versatility and precision, making it suitable for various complex machining tasks.
The machine offers a substantial X, Y, Z axis travel of 60 x 26 x 24 inches, ensuring a wide range of motion for diverse operations. The B, C axis travel is +/- 92, 360 degrees, enabling comprehensive angular positioning. The spindle nose to table distance ranges from 0.5 to 24.5 inches, catering to different workpiece sizes and setups.
The table itself is notably robust, boasting dimensions of 66 x 26 inches, with a C axis table diameter of 23.6 inches. It can handle a maximum weight of 3,000 lbs., while the rotary/trunnion table accommodates up to 1,100 lbs., supporting heavy-duty projects with ease.
At the heart of this machine is its spindle, which reaches a maximum speed of 16,000 rpm, facilitating efficient and rapid material removal. The tool changer uses a CAT-40 holder and accommodates 40 tools, providing flexibility and reducing the need for frequent tool changes. It supports maximum tool dimensions of 2.95 inches in diameter, lengths of up to 9.8 inches, and weights of 15.4 lbs.
The HURCO VMX60SRTI's operating floor space is 222.9 x 154.4 inches, with a machine height of 129.8 inches and a weight of 23,980 lbs. This formidable structure enhances stability during operations, ensuring consistent output over extended periods.
Additional equipment features highlight the machine's advanced technological design. It is outfitted with the WinMax CNC Control, a 300 psi Coolant Thru Spindle, and a 16,000 RPM spindle, combining advanced control and functionality. The 3D Import includes DXF capabilities, allowing for seamless integration of design files.
The Tool & Material Library and UltiPockets augment programming flexibility, while the NC/Conversational Merge streamlines operation transitions. Probing capability is ensured by the Renishaw RMP 60 Part Probe and RTS Tool Probe, which facilitate precise measurement and setting adjustments. Finally, a mist collector contributes to a cleaner work environment, capturing airborne particles generated during operation.
This 2022 HURCO VMX60SRTI embodies sophisticated design and technical proficiency, offering a comprehensive suite of features ideal for demanding machining tasks. Its thoughtful construction and advanced tool handling capabilities cater to a myriad of production needs and industry applications.
