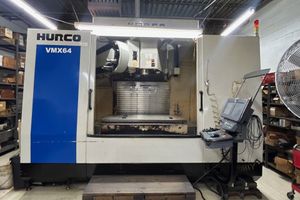

2006 HURCO VMX64-50

Travel & Table

X-Axis Travel: ~64 in (1625 mm)

Y-Axis Travel: ~34 in (860 mm)

Z-Axis Travel: ~30 in (760 mm)

Table Size: ~66? × 35? (1676 mm × 890 mm)

Max Table Load: ~5440 lb (? 2465 kg)

? Spindle

Spindle Taper: CAT-50 / SK50

Spindle Speed: Up to 8,000 RPM

Spindle Motor: ~30 HP (? 22 kW)

Spindle Torque: ~353 ft-lb @ 600 RPM (per some listings)

? Tooling & ATC

Tool Changer: 32-station Automatic Tool Changer

Tool Selection: Random access ATC

Max Tool Weight: ~33 lb (? 15 kg)

Max Tool Length: ~11.8? (~300 mm)

? Feed & Rapids

Rapid Feed Rates:

X & Y: ~709 IPM (~18 m/min)

Z: ~530 IPM (~13.5 m/min)

????? Dimensions & Weight

Machine Weight: ~34,000 lb (? 15,400 kg)

?? Typical Add-Ons (Varies by Unit)

Depending on the specific machine and options package, units may include:

Chip conveyor

Coolant thru spindle

Synchronised tapping

Advanced velocity control

Splash guarding and enclosure

Dual screen control (Ultimax or Winmax)
