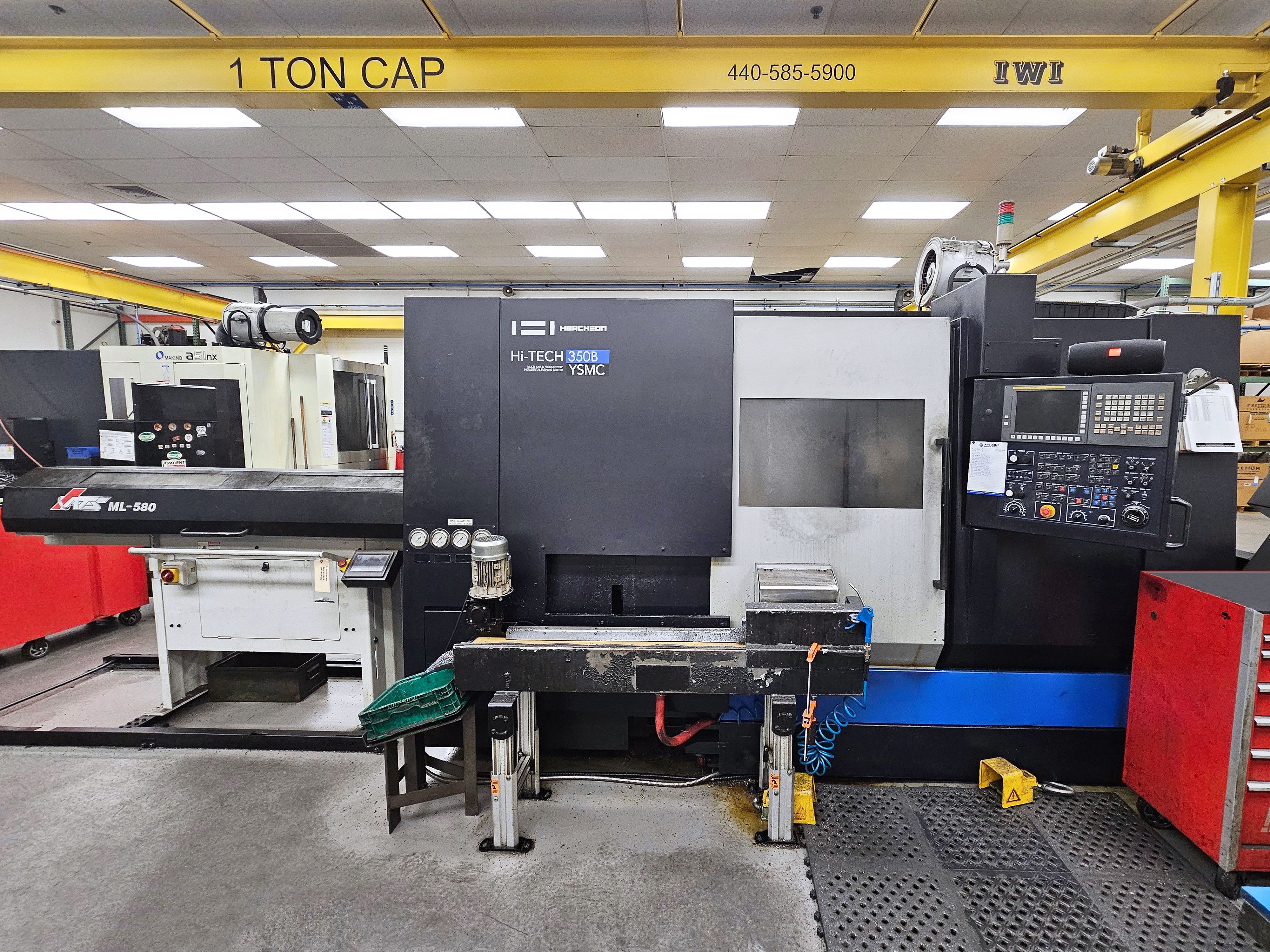

2016 HWACHEON HITECH350BYMC

ID:11623
Brand:HWACHEON
Model: HITECH350BYMC
Year:2016
Category:CNC Lathe
Location:Ohio

Located In Ohio

SHIPPING COST :

HWACHEON HITECH350BYMC AI Chat

Loading ...

Machine Overview

Specs:

Bar Capacity: 3.5"
Chuck Size: 12"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.6"
Z Axis Travel: 27.2"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 17.7"
Max Turning Length: 26.7"
Max Swing: 29.5"
Axis and Travel:
X-axis Travel: 270 mm (10.6 inches)
Y-axis Travel: ±50 mm (±2.0 inches)
Z-axis Travel: 690 mm (27.2 inches)
C-axis (for milling operations): 0.001° index resolution

Spindle:
Spindle Speed: 3,500 RPM
Spindle Motor Power: 30 HP (22 kW)
Spindle Bore: 117 mm (4.6 inches)
Bar Capacity: 90 mm (3.5 inches)
Milling Capability (Live Tooling):
Tool Turret: 12-station turret with live tooling capability
Milling Speed: 6,000 RPM
Live Tool Motor Power: 7.5 HP (5.5 kW)
Additional Features:
Tool Shank Size: 25 mm for OD tools, 40 mm for boring bars
Rapid Traverse Rates: 24 m/min (X/Z)
Dimensions: 175" x 82" x 99"
Weight: 16,280 LBS

Options:

Fanuc OiTF
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

Pre-owned HWACHEON HITECH350BYMC 2016 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Ohio. This HWACHEON CNC Lathe is available for a limited time. Get a quote today on this HITECH350BYMC before it's gone.
