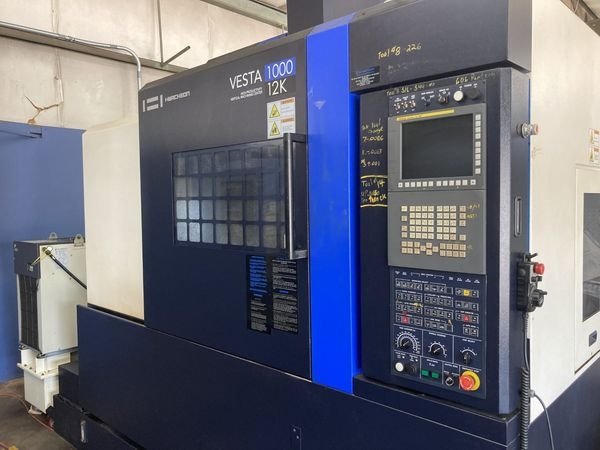

Used HWACHEON VESTA1000 Vertical Machining Center

This 2015 Hwacheon Vesta1000 Vertical Machining Center is a great choice for any shop looking to increase their production capabilities. This machine has been well maintained and is in excellent condition. It features a Fanuc Oi-MF CNC control, X axis travel of 39.3", Y axis travel of 21.653" and Z axis travel of 19.68". The rapid rate on the X, Y and Z axes are 1,414 IPM, 1,414 IPM and 1,179 IPM respectively while the table size measures 43.3" x 19.685" with a max load capacity of 1540 lbs.. The spindle motor is 20 HP with 12000 RPM speed and 40 CT taper while the tool changer holds 24 ATC tools at once. In addition to these impressive specs this machining center also comes equipped with several options such as chip conveyor, coolant thru spindle 4th Axis Rotary Table Tool presetter making it even more versatile than before!

Specs:
X Axis Travel: 39.3"
Y Axis Travel: 21.653"
Z Axis Travel: 19.68"
Rapid Rate X Axis: 1,414 IPM
Rapid Rate Y Axis: 1,414 IPM
Rapid Rate Z Axis: 1,179 IPM
Table Size: 43.3" x 19.685"
Max Table Load: 1,540 LBS
Spindle Motor: 20 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Dimensions: 88" x 97" x 112"
Weight: 26,000 LBS
Options:
Fanuc Oi-MF
Chip Conveyor
Coolant Thru Spindle
4th Axis Rotary Table
Tool presetter
12,000 RPM Spindle
Price:
$89,500
$86,500
