Seller Needs:
$77,500|
20870
|
1

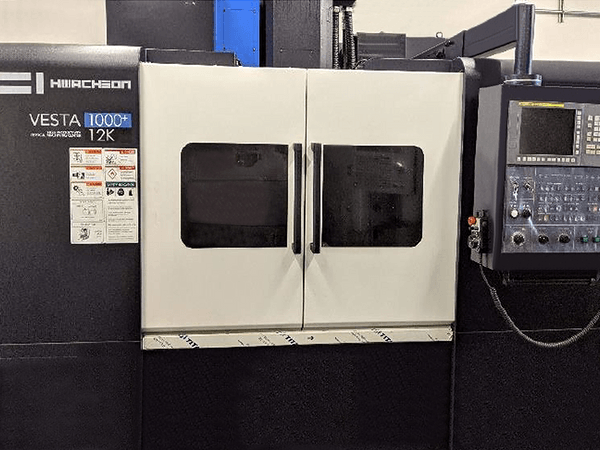

The 2018 Hwacheon Vesta1000 Vertical Machining Center is a CNC machine that can handle a variety of machining tasks. This CNC machine features a Fanuc 0i-MF control system, which provides precise and accurate cutting capabil...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 39.3"
Y Axis Travel: 21.653"
Z Axis Travel: 19.68"
Rapid Rate X Axis: 1,414 IPM
Rapid Rate Y Axis: 1,414 IPM
Rapid Rate Z Axis: 1,179 IPM
Table Size: 43.3" x 19.685"
Max Table Load: 1,540 LBS
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Dimensions: 88" x 97" x 112"
Weight: 26,000 LBS
Y Axis Travel: 21.653"
Z Axis Travel: 19.68"
Rapid Rate X Axis: 1,414 IPM
Rapid Rate Y Axis: 1,414 IPM
Rapid Rate Z Axis: 1,179 IPM
Table Size: 43.3" x 19.685"
Max Table Load: 1,540 LBS
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Dimensions: 88" x 97" x 112"
Weight: 26,000 LBS
Options:
Fanuc 0i-MF
Probe
Chip Conveyor
Coolant Thru Spindle
Renishaw OMP 60-2 OTS Dual Probe Kit
Kurt DX6 Vice
Probe
Chip Conveyor
Coolant Thru Spindle
Renishaw OMP 60-2 OTS Dual Probe Kit
Kurt DX6 Vice
Seller:
DaveG722
Location:
Florida
