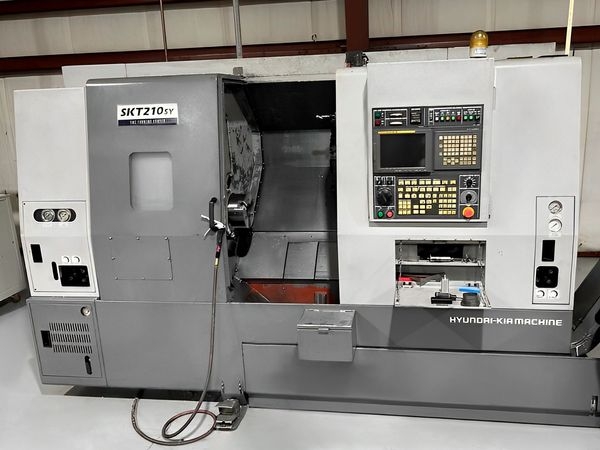

Used HYUNDAI KIA SKT210SY CNC Lathe

This 2008 HYUNDAI KIA SKT210SY CNC Lathe is a great choice for any shop looking to increase their production capabilities. This lathe features a Fanuc 18i-TB CNC Control, 3" bar capacity, 8" chuck size, 4,000 RPM spindle speed and 30 HP spindle motor. It also has 945 IPM rapid rate Z axis and 12 station turret tools with 945 IPM rapid rate X axis. The maximum turning diameter is 9.5", the maximum turning length is 28", and the max swing is 21.7". The sub spindle runs at 4000 RPM while live tooling includes .001 index C Axis, +/- 2” Y Axis milling at 3500 RPM with 5HP power. Options include chip conveyor, parts catcher, live tooling, sub spindle and Y Axis as well as 5 Axis capability for increased versatility in machining operations. This 2008 HYUNDAI KIA SKT210SY CNC Lathe offers  performance that will help you get more done complete front to back! With its powerful motor and advanced control system it can handle even the most demanding jobs with ease! If you're looking for an efficient way to increase your production capabilities then this machine should be on top of your list of CNC!

Specs:
Bar Capacity: 3"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 9.5"
Max Turning Length: 28"
Max Swing: 21.7"

SUB SPINDLE:
Sub Spindle: 4000 RPM

LIVE TOOLING:
C Axis .001 Index
Y Axis Milling +/- 2"
Live Tooling: 3,500 RPM
Power: 5HP

Dimensions: 180" x 84" x 84"
Weight: 12,000 LBS
Options:
Fanuc 18i-TB CNC Control
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Price:
$74,900
