Machine Overview

Specs:
CNC Control: yes
Control Type: Fanuc 0i-TD
Swing: 13.78"
Center Distance: 40"
Max Weight Between Centers: 220 pounds
Grinding Wheel Dimensions: 18" x 2.5" x 5"
Grinding Wheel Speed RPM: 1,880 rpm
Grinding Wheel Spindle Motor: 10.2 hp
Wheelhead (Angle / Straight / Universal): Universal
Wheelhead Swivel: +90 to -190 CNC Controlled
Workhead Taper: MK5
Workhead Speed: 1,000 rpm
Workhead (Live / Dead): Live
X-Axis Travel: 13.77"
Z-Axis Travel: 45"
Internal Grinding Attachment: yes
I.D. Spindle Speed RPM: 40,000 rpm
Machine Dimensions: 118" x 67"
Machine Weight: 11,000 pounds
Description:

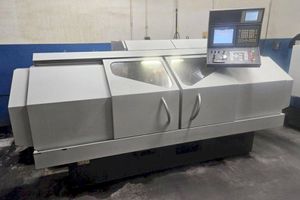

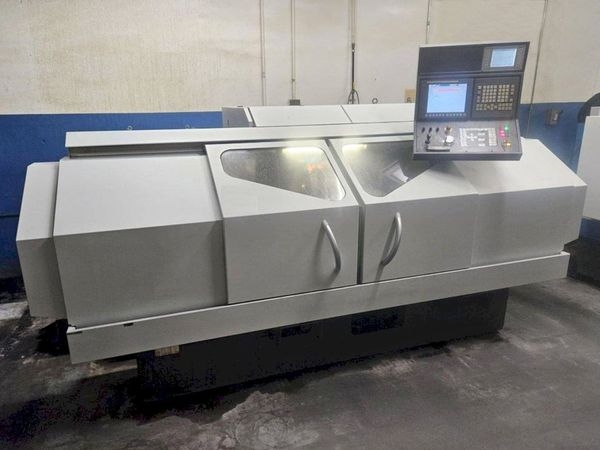

This 2013 KELLENBERGER KEL VISTA 175 is a versatile CNC cylindrical grinding machine suitable for both small and large-scale operations. Designed with CNC control and utilizing the Fanuc 0i-TD system, this machine offers precise and user-friendly operation capabilities. A swing of 13.78 inches and a center distance of 40 inches highlight its ability to handle a variety of workpiece sizes.

Featuring a maximum weight between centers of 220 pounds, it is robust enough for a variety of grinding tasks. The grinding wheel measures 18 x 2.5 x 5 inches and can reach a speed of 1,880 rpm, driven by a 10.2 hp spindle motor. With its universal wheelhead, the machine can swivel from +90 to -190 degrees, controlled via CNC, allowing for flexible task execution.

The workhead comes with a MK5 taper and can achieve speeds up to 1,000 rpm. It is classified as a live workhead, which enhances the machine's ability to handle continuous processes. This model supports X-axis travel of 13.77 inches and Z-axis travel of 45 inches, allowing for extensive maneuverability during operations.

An internal grinding attachment is included with a spindle that reaches up to 40,000 rpm, offering capabilities for intricate internal work. Measuring 118 inches by 67 inches, this machine fits into a variety of workspace setups and, at a weight of 11,000 pounds, offers stability during use.

This KELLENBERGER KEL VISTA 175 is a solid choice for precise and flexible grinding tasks, designed to adapt to various operational demands. Its comprehensive feature set makes it a reliable asset for businesses looking to expand their grinding capabilities.
