Machine Overview

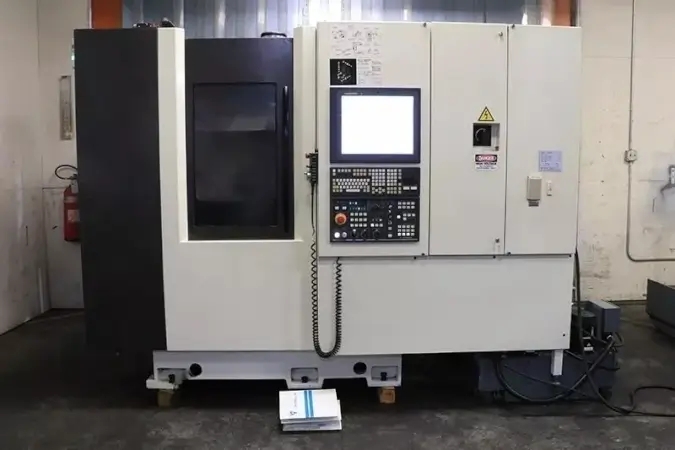

This is a 2013 KITAMURA HX250G which includes some key features. Some of these special options are a Chip Conveyor, the full capacity to run Coolant Thru Spindle, and a 360,000 Full 4th.
Let's go over some of the key specs of this machine. The X-AXIS TRAVEL is 12", as is the Y-AXIS TRAVEL. The Z-AXIS TRAVEL is slightly longer, at 13". The SPINDLE POWER stands at 15 HP, and the SPINDLE SPEED reaches a peak of 15,000 RPM. Moreover, there are 40 TOOL POSITIONS. The SPINDLE TAPER has been crafted into a BT-30 shape. The PALLET DIMENSIONS are 10" X 10", and there are 4 PROGRAMMABLE AXES. The MAXIMUM WORKPIECE DIAMETER is 13.8", and the MAXIMUM WORKPIECE HEIGHT is 15.8". Rapid feed rates for the X, Y, Z axes are at 2,362 IPM, and the cutting feed rate for these axes matches the rapid feed rates. The rapid feed for the B-AXIS rests at 33.3 RPM. This machine can hold up to 2 pallets and can change them in about 8 seconds. The REQUIRED FLOOR SPACE is 111.5" X 116.1" X 89.9" H, and the total weight of the machine is roughly at 12,000 lbs.
The machine comes with several options that aid in its usage and handling. It is fitted with a KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL and a FULL 4TH AXIS. Furthermore, it includes a COOLANT THROUGH THE SPINDLE limited to 220 PSI. With the basic understanding of the machine and these specs, it can be seen that the machine is steadfast in its performance and usability.
