Seller Needs:
$21,000|
823
|
0

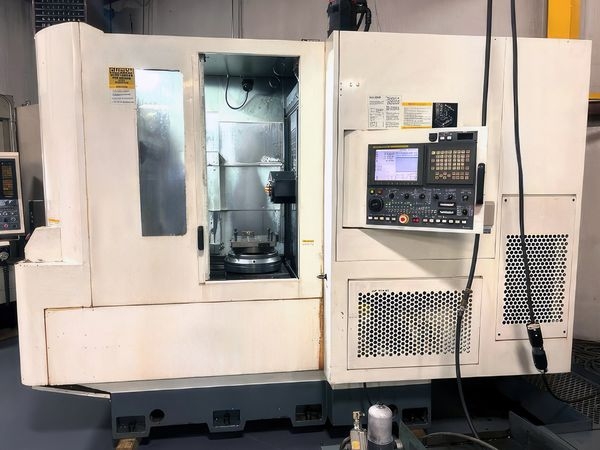

Pre-owned KITAMURA HX300 2006 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a FANUC Series 16i-M control. This CNC Machine is currently located in Pennsylvania. Th...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 20.1"
Y Axis Travel: 20.1"
Z Axis Travel: 15.7"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,417 IPM
Max Pallet Load: 550 LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle center to table top: 2.1" - 24.8"
Tool change time (T/T, C/C): 1.3 / 3.9 sec
Feed rate: 0.01 - 630 ipm
Weight: 15,400 LBS
ELECTRIC POWER SOURCE:
Main circuit 3-Phase current: AC 200/220 v
(If the machine has a transformer, this is secondary voltage)
Frequency 50/60 Hz
Y Axis Travel: 20.1"
Z Axis Travel: 15.7"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,417 IPM
Max Pallet Load: 550 LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Spindle center to table top: 2.1" - 24.8"
Tool change time (T/T, C/C): 1.3 / 3.9 sec
Feed rate: 0.01 - 630 ipm
Weight: 15,400 LBS
ELECTRIC POWER SOURCE:
Main circuit 3-Phase current: AC 200/220 v
(If the machine has a transformer, this is secondary voltage)
Frequency 50/60 Hz
Options:
FANUC Series 16i-M
Chip Conveyor
Coolant Thru Spindle
360,000 Full 4th
220 PSI CTS
Chip Conveyor
Coolant Thru Spindle
360,000 Full 4th
220 PSI CTS
Seller:
StevP512
Location:
PA
