Seller Needs:
$34,650|
839
|
0

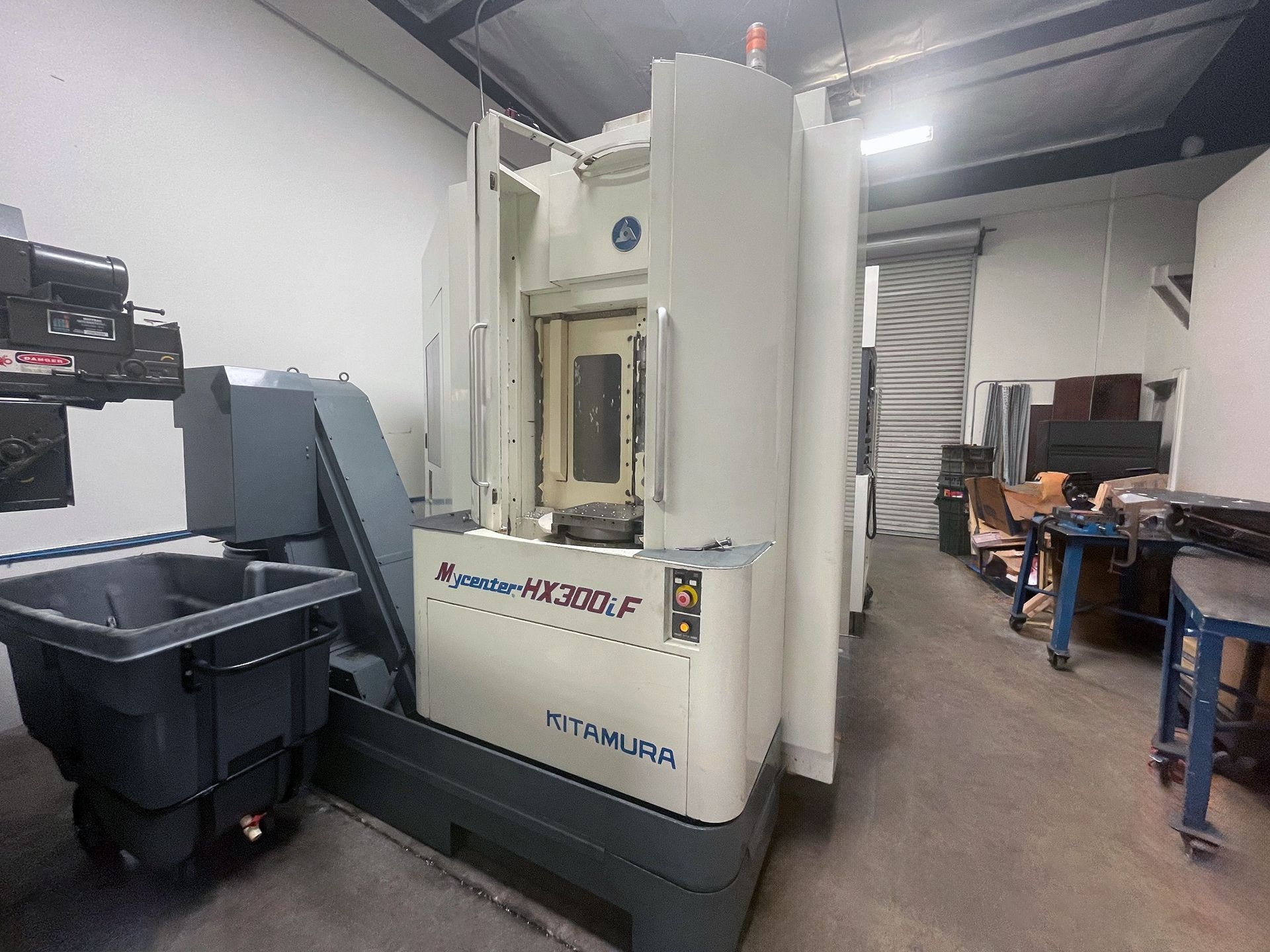

Pre-owned KITAMURA HX300IF 2007 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in USA. This KITAMURA Horizontal Machining Center is available for a limited time. Get a quote today on this HX300IF before it's gone.
Seller Needs:
Payment:
Specs:
X Axis Travel: 20"
Y Axis Travel: 20"
Z Axis Travel: 15.7"
Rapid Rate X Axis: 945 IPM
Rapid Rate Y Axis: 945 IPM
Rapid Rate Z Axis: 945 IPM
Pallet Size:
Max Pallet Load: LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Pallet Indexing .001 Degree
Max. Workpiece Diameter x Height 19.6” x 29.1”
Distance from Table Surface to Spindle Center 1.5” to 21.6”
Distance from Table Center to Spindle Nose 4.0” to 20.1”
Dimensions:
Weight: LBS
Y Axis Travel: 20"
Z Axis Travel: 15.7"
Rapid Rate X Axis: 945 IPM
Rapid Rate Y Axis: 945 IPM
Rapid Rate Z Axis: 945 IPM
Pallet Size:
Max Pallet Load: LBS
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Pallet Indexing .001 Degree
Max. Workpiece Diameter x Height 19.6” x 29.1”
Distance from Table Surface to Spindle Center 1.5” to 21.6”
Distance from Table Center to Spindle Nose 4.0” to 20.1”
Dimensions:
Weight: LBS
Options:
Fanuc
Chip Conveyor
360 Deg. Indexing Table
360,000 Full 4th
Pallet Pool/FMS
2 Tombstones. Selling machine as is. No warranty.
Chip Conveyor
360 Deg. Indexing Table
360,000 Full 4th
Pallet Pool/FMS
2 Tombstones. Selling machine as is. No warranty.
Seller:
DaviL629
Location:
USA
