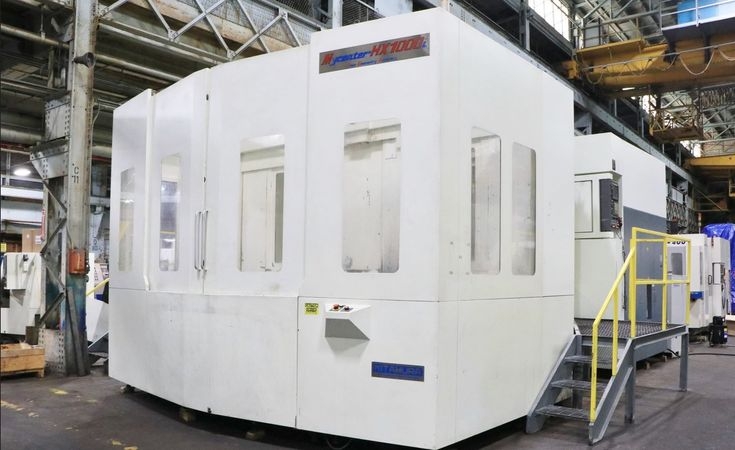

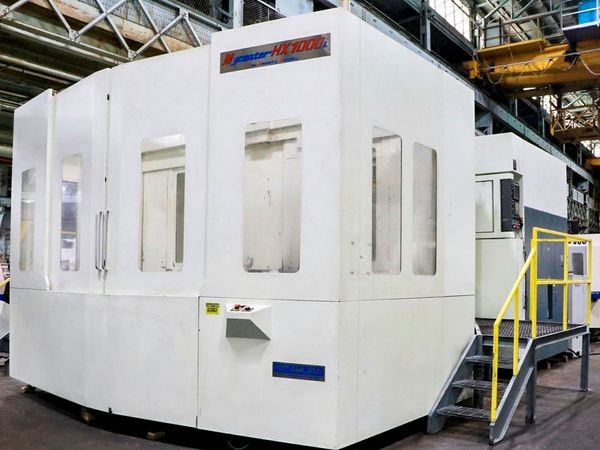

Used KITAMURA MYCENTER HX1000I Horizontal Machining Center
Pre-owned KITAMURA MYCENTER HX1000I 2010 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc 16i-MB control. This CNC Machine is currently located in Maryland. This KITAMURA Horizontal Machining Center is available for a limited time. Get a quote today on this MYCENTER HX1000I before it's gone.
Specs:
X Axis Travel: 80.31"
Y Axis Travel: 51.97"
Z Axis Travel: 53.94"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,417 IPM
Pallet Size: 39.37"
Max Pallet Load: 6600 LBS
Spindle Speed: 8,000 RPM
Spindle Motor: 40 HP
Spindle Taper: #50 CT
Tool Changer: 150 ATC
Dimensions: 194" x 345" x 150"
Weight: 126,104 LBS
Y Axis Travel: 51.97"
Z Axis Travel: 53.94"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,417 IPM
Pallet Size: 39.37"
Max Pallet Load: 6600 LBS
Spindle Speed: 8,000 RPM
Spindle Motor: 40 HP
Spindle Taper: #50 CT
Tool Changer: 150 ATC
Dimensions: 194" x 345" x 150"
Weight: 126,104 LBS
Options:
Fanuc 16i-MB
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
897 FOOT-POUNDS OF TORQUE
COOLJET HIGH-PRESSURE COOLANT SYSTEM
150 TOOL POSITIONS
BOX WAY
LINEAR SCALE FEEDBACK (ALL AXES)
TWIN BALL SCREWS & TWIN SERVO MOTORS
AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
TOOL RETRACT & RECOVER
PROGRAM RESTART
APPROX (70) BT50 TOOL HOLDERS
(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
897 FOOT-POUNDS OF TORQUE
COOLJET HIGH-PRESSURE COOLANT SYSTEM
150 TOOL POSITIONS
BOX WAY
LINEAR SCALE FEEDBACK (ALL AXES)
TWIN BALL SCREWS & TWIN SERVO MOTORS
AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
TOOL RETRACT & RECOVER
PROGRAM RESTART
APPROX (70) BT50 TOOL HOLDERS
(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS
Price:
Call For Price
Owner:
Don (Located in NJ)
