2004 KOMO MACH III SERIES

ID:13324
Brand:KOMO
Model: MACH III SERIES
Year:2004
Category:Vertical Machining Center
Location:USA

Located In USA

500-1000 Hours

Hello!

Machine Overview

Specs:

Y Axis Travel: 114"
X Axis Travel: 370"
Z Axis Travel: 15"
Spindle Motor: 16 HP
Spindle Speed: 24,000 RPM
Tool Changer: Twin, 12 position ATC
Table Size: 60" x 120"
Dimensions: 360" x 91" x "
Weight: 22,000 LBS
Table Dimensions: 60 x 144in
X-Axis Travel: 158in
Y-Axis Travel: 84in
Z-Axis Travel: 15in
Router Heads: 2 x 16HP
Vacuum Table: 5 x 12ft
Vacuum Pump: 25HP
Control System: GE/Fanuc CNC
Voltage Requirement: 480v, 60cy, 3ph
Spindle Type: HSK-63
X-Axis Feed/Traverse Rate: 3150IPM
Y-Axis Feed/Traverse Rate: 3150IPM
Brand: KOMO
Model: MACH III Series
Spindle Type: HSK 63F Air Cooled
Spindle Power: 16hp
Tool Holders: HSK Tool Holders
Drill Boring Blocks: (14 vertical and 6 horizontal)
Table Type: Aluminum Machined NEMI Matrix Grid Tables
Control: Fanuc 180-I-M
Max Rapid Travel: 3,150ipm
Control Cabinet: Air Conditioned
Lubrication: Automatic Oil Lubrication on all Linear Ways and Ball Screws
Vacuum Pump: Kaeser BSV 10025hp
x/y/z travel: 120 x 60 x 12inches
spindle power: 15HP
features: Premier machine with more options
x/y/z travel: 120 x 60 x 12inches
spindle power: 15HP
features: 15 position automatic tool changer, aggregate capability
x/y/z travel: 120 x 60 x 12inches
spindle power: 15HP
features: Single Table or Twin Table, optional features like tooling packages, vacuum pumps
spindle power: 16HP
boring head: 20-spindle
vertical spindles: 14
horizontal spindles: 6
servo drive system: Closed loop
positioning accuracy: +/- 0.001
x and y axis feed rate: 3150IPM
z axis feed rate: 600IPM
vacuum zones: 2
control: FANUC 180i Series
tool carousel capacity: 12-position
positioning system: FANUC brushless AC Servo motors
table dimensions: 360 x 91in
clearance under rail: 19in
spindle count: 3
tool capacity: 12
control: Fanuc 180i
vacuum table zones: 3
vacuum pump: Quincy

Description:

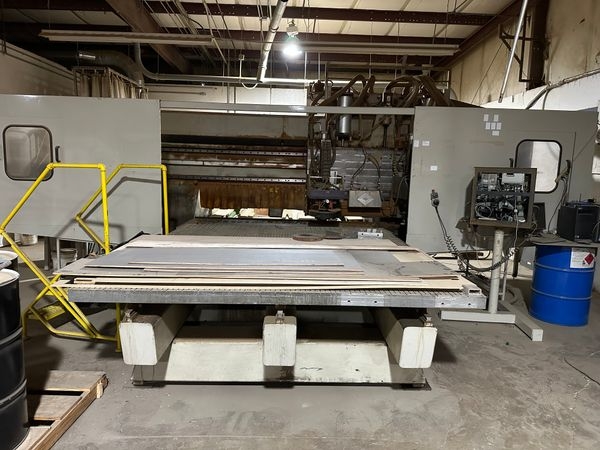

Pre-owned KOMO MACH III SERIES 2004 Vertical Machining Center. This Vertical Machining Center has 500-1000 cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This KOMO Vertical Machining Center is available for a limited time. Get a quote today on this MACH III SERIES before it's gone.
