Hello!

Machine Overview

Specs:
X Axis Travel: 28.76"
Y Axis Travel: 25.61"
Z Axis Travel: 28.76"
Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40 CT
Spindle Motor: 30 HP
Rapid Rate Y Axis: 1,969 IPM
Rapid Rate X Axis: 1,969 IPM
Rapid Rate Z Axis: 1,969 IPM
Tool Changer: 40 ATC
Max Pallet Load: 1540 LBS
Max. Workpiece Size: 31.5" x 39.4"
Max. Tool Diameter: 6.7"/14.2"
Max. Tool Weight: 26.4 LBS
Pallet Size: 19.7" x 19.7"
Dimensions: 190" x 115" x 115"
Weight: 20,900 LBS

2008 Makino MMC2 Multi Layer 24 Pallet System
This is a MMC for A61 machines. We currently have 2 A61’s on this system. One 2008 unit is listed below. The other we are going to keep because it has an HSK spindle. Therefore a separate 2012 unit (listed below) will be taken off another MMC to swap for the HSK spindle machine.

2008 Makino A61
Has Renishaw MP700 probe and the software.
This machine is currently installed on the above MMC we are looking to sell.

2012 Makino A61NX
Doesn’t have a probe or the software.
This machine is on another MMC that we have on site but will be sold with the first 2 pieces of equipment.

We would need to sell the MMC and 2 machines as a complete package instead of separate.
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
Pallet Pool/FMS
Professional 5 Controls
MMC2 System 24 pallet pallet pool with two work stations, 12 pallets available
Module MMC
134 / 133 Position Tool Changer
Mayfran Concept 2000 Chip Conveyor
ChipBlaster 1000 PSI Through Spindle
Coolant Temperature Controller
Data Server
Buffer Mode for Data server
Air Dryer
Renishaw Auto Part Measuring
Renishaw Auto Tool Length Measurement
High Accuracy Package
Helical Interpolation
4200 ft / 2100 ft part program storage
1000 / 500 registered programs
200 / 200 tool offset pairs
Tool offset memory type C
300 additional work offsets
Description:

This 2008 MAKINO A61 Horizontal Machining Center comes equipped with a variety of options and upgrades designed for versatile functionality. Its features include a Chip Conveyor, Probe, and Coolant Thru Spindle. The machine boasts a 360,000 Full 4th axis accompanied by a Pallet Pool/FMS, ensuring streamlined operations.

It is integrated with the advanced Professional 5 Controls, and is part of an MMC2 System, featuring a 24-pallet pallet pool with two work stations. Alongside this, 12 pallets are available for simultaneous processing, and the inclusion of Module MMC complements the setup. Its tool handling capacity is highlighted by a 134/133 Position Tool Changer and is connected to a Mayfran Concept 2000 Chip Conveyor.

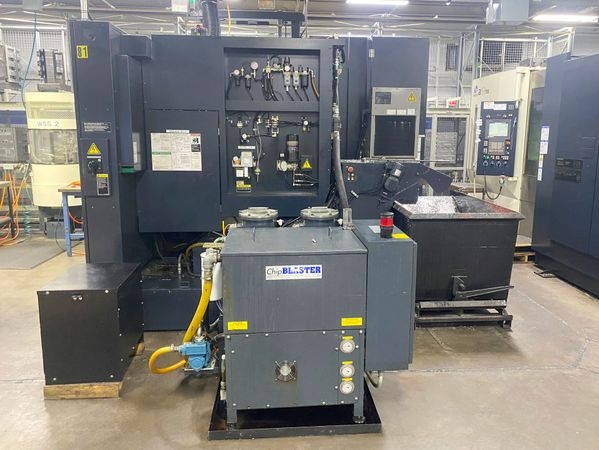

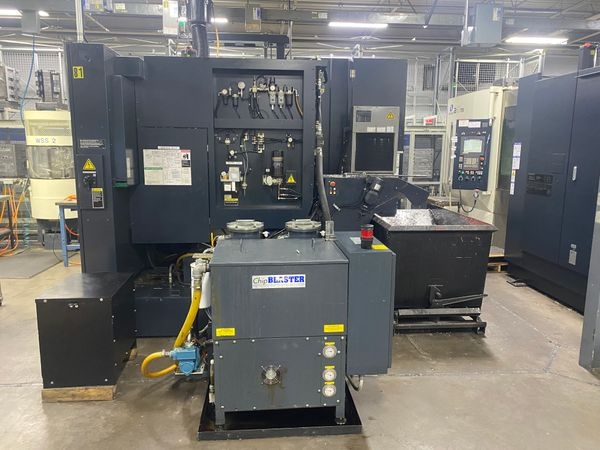

For improved spindle function, a ChipBlaster 1000 PSI Through Spindle system is installed, alongside Coolant Temperature Controller capabilities. The Data Server, combined with Buffer Mode, enhances digital management, while an Air Dryer ensures optimal operating conditions.

The machine is equipped with a Renishaw Auto Part Measuring and Auto Tool Length Measurement system, ensuring cutting precision. Technological enhancements continue with the High Accuracy Package and Helical Interpolation features. The Machining Center is capable of handling significant data loads with 4200 ft / 2100 ft part program storage and can manage 1000/500 registered programs. It offers substantial tool offsets with 200/200 tool offset pairs and includes a Tool Offset Memory Type C alongside 300 additional work offsets.

This package also incorporates the 2008 Makino MMC2 Multi Layer 24 Pallet System tailored for A61 machines. Though we maintain two A61s on this system, only one from 2008 is listed for sale as part of this package. This selected machine includes a Renishaw MP700 probe and accompanying software.

Additionally, a 2012 Makino A61NX is part of the offering. Please note that this 2012 model lacks a probe or software. It resides on another MMC on our premises but will be sold with the aforementioned equipment.

For integrated use, the MMC and the two machines are offered as a complete package.
