Machine Overview

Specs:
PALLET WIDTH: 500.38 mm
PALLET LENGTH: 500.38 mm
PALLET INDEXING: FULL 4TH
NUMBER OF PALLETS: 2
MAX WORKPIECE WEIGHT: 549.8 kg
X-AXIS TRAVEL: 728.98 mm
Y-AXIS TRAVEL: 650.24 mm
Z-AXIS TRAVEL: 800.1 mm
SPINDLE SPEED: 14,000 RPM
SPINDLE MOTOR: 26.1 kW
SPINDLE TAPER: CAT 40
TOOL POSITIONS (ATC): 60

PRO 5 CONTROL
FULL 4TH AXIS
THROUGH-SPINDLE COOLANT & AIR (300 PSI)
PQI/RENISHAW OMP400 RENGAGE PROBING SYSTEM
14,000 RPM SPINDLE (CAT 40)
60 TOOL POSITIONS
MISTBUSTER MIST COLLECTOR
CHIP CONVEYOR (LEFT DISCHARGE)
600 MACRO CUSTOM VARIABLES
HIGH-SPEED SKIP FUNCTION
HELICAL INTERPOLATION
RIGID TAPPING
460V POWER** AS OF JUNE 2025, CUTTING TIME 10,860 HOURS** FULL REPLACEMENT COST, AS EQUIPPED - $375,000
** MACHINE CUT PRIMARILY ALUMINUM, CARBON STEEL & STAINLESS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE** WINDOW GLASS IS BROKEN ON MAIN OPERATOR DOOR
** TOMBSTONES & TOOL HOLDERS SHOWN IN PHOTOS ARE NOT INCLUDED WITH THE MACHINE
Options:
Chip Conveyor
Description:

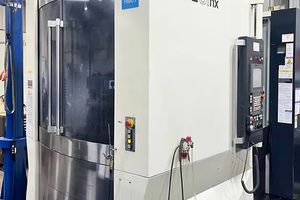

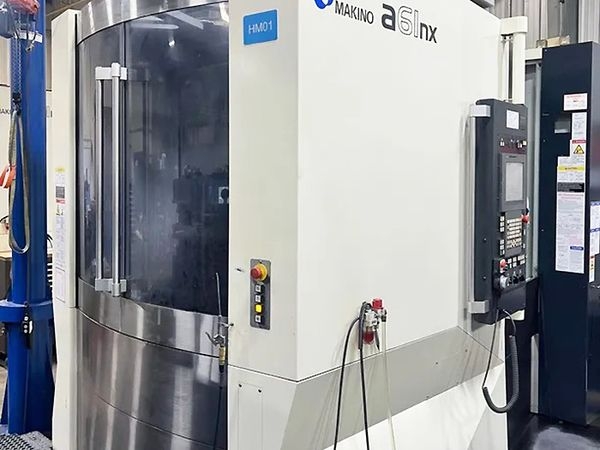

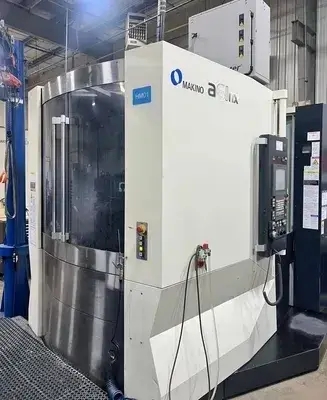

This 2015 MAKINO A61NX is a robust machining center, perfect for operations that need precise metal work. The machine includes options like a Chip Conveyor with left discharge, ensuring efficient removal of debris during operation. It’s ready to boost productivity with its advanced features and solid specifications.

The machine boasts a pallet width and length of 500.38 mm, combined with full 4th axis pallet indexing and two pallets, offering flexible and varied setups for different tasks. It can handle a maximum workpiece weight of up to 549.8 kg, making it well-suited for heavy-duty projects.

In terms of mobility, the MAKINO A61NX offers substantial travel capabilities with X-axis travel at 728.98 mm, Y-axis travel at 650.24 mm, and Z-axis travel at 800.1 mm. These dimensions allow for extensive machining tasks. The 14,000 RPM spindle speed, coupled with a spindle motor of 26.1 kW and CAT 40 spindle taper, ensures high-speed performance and effective cutting power.

This model comes with advanced controls and features, including the PRO 5 Control system and a PQI/Renishaw OMP400 probe system. The machine has a 60-tool Automatic Tool Changer (ATC), through-spindle coolant and air capability at 300 PSI, and a high-speed skip function with 600 macro custom variables.

Additional features include helical interpolation and rigid tapping for improved versatility. The MistBuster mist collector enhances the work environment by reducing mist during operation. This machine runs on 460V power and has logged 10,860 hours of cutting time primarily on aluminum, carbon steel, and stainless steel.

Despite being a used model, it remains under power, allowing for immediate inspection and purchase at its current plant location. It’s an opportunity to acquire a high-capacity machine without the full replacement cost of $375,000, making it a pragmatic choice for workshops looking to enhance their capabilities.

Note that while the machine is well-equipped, the window glass on the main operator door is broken, and tombstones and tool holders shown in the photos are not included. Prospective buyers are welcome to arrange a viewing for a firsthand assessment of its current condition and operational capabilities.
