Seller Needs:
$33,000|
1386
|
2

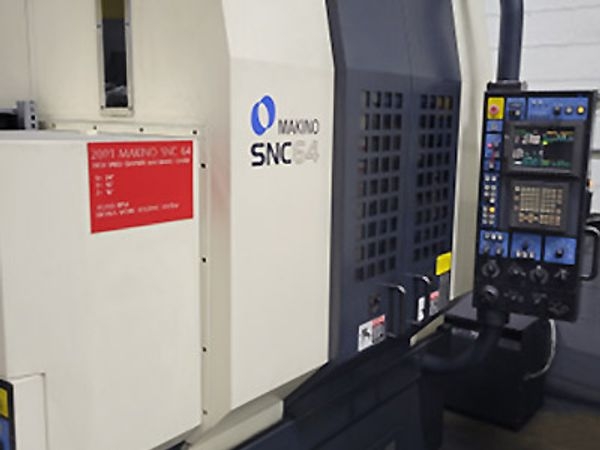

Pre-owned MAKINO SNC64 2001 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This MAKINO Vertical Machining C...Read More
Seller Needs:
Payment:
Specs:
Spindle Hours: Approx. 20,000 hrs
Power On Hours: 79,000 hrs., 78,580 hrs., 79,002 hrs. & 79,693 hrs.
Type of CNC Control: Fanuc Professional A
Spindle Speed (min. - max.): 300 - 30,000 rpm
Spindle Taper: HSK 63F
Coolant Thru Spindle: no
Tool Changer Capacity: 15
Tool-to-Tool: 15 sec.
Spindle HP: 15 horsepower
Max X Travel: 23.62” (600mm)
Max Y Travel: 15.75” (400mm)
Max Z Travel: 15.75” (400mm)
Spindle to Table Distance (min. - max.): 9.84” to 25.59” (250 to 650mm)
Table Size: 29.52” x 15.75”
Max workpiece Weight: 550lbs
Rapid and Cut Rate: 629 ipm
Machine Weight: 10,300 lbs
Power On Hours: 79,000 hrs., 78,580 hrs., 79,002 hrs. & 79,693 hrs.
Type of CNC Control: Fanuc Professional A
Spindle Speed (min. - max.): 300 - 30,000 rpm
Spindle Taper: HSK 63F
Coolant Thru Spindle: no
Tool Changer Capacity: 15
Tool-to-Tool: 15 sec.
Spindle HP: 15 horsepower
Max X Travel: 23.62” (600mm)
Max Y Travel: 15.75” (400mm)
Max Z Travel: 15.75” (400mm)
Spindle to Table Distance (min. - max.): 9.84” to 25.59” (250 to 650mm)
Table Size: 29.52” x 15.75”
Max workpiece Weight: 550lbs
Rapid and Cut Rate: 629 ipm
Machine Weight: 10,300 lbs
Options:
Fanuc Professional A
Super Gi Finishing mode (Better look ahead on control for running software)
Dust Collector
Extended memory (holds 200 programs in control)
Additional 48 workpiece positions (54 total)
Super Gi Finishing mode (Better look ahead on control for running software)
Dust Collector
Extended memory (holds 200 programs in control)
Additional 48 workpiece positions (54 total)
