Machine Overview

Specs:
X Axis Travel: 25.59"
Y Axis Travel: 17.7"
Z Axis Travel: 16.53"
U Axis Travel: ±2.95"
V Axis Travel: ±2.95"
Table Size: 35.8" x 27.9"
Inside Tank Dimensions: 42.12" x 34.64"
Max Workpiece Dimensions: 39.37"L x 31.49"W x 15.74"H
Maximum dielectric fluid height: 17.91"
Max Workpiece Weight: 3,306 lbs
Taper Cutter: 15°
X & Y Glass Scale Feedback: 0.000002"

Table: 910 x 710 mm
X: 650 mm
Y: 450 mm
Z: 420 mm
U-Axis: ±75 mm
V-Axis: ±75 mm
Maximum Workpiece Size: 1000 x 800 x 400 mm Tall
Maximum Workpiece Weight: 1,500 kg
Tank Size: 1,070 mm x 880 mm
Available Wire Size: 0.100 mm, 0.150 mm, 0.200 mm, 0.250 mm, 0.300 mm, 0.400 mm ø
Options:
Type: CNC Wire
Description:

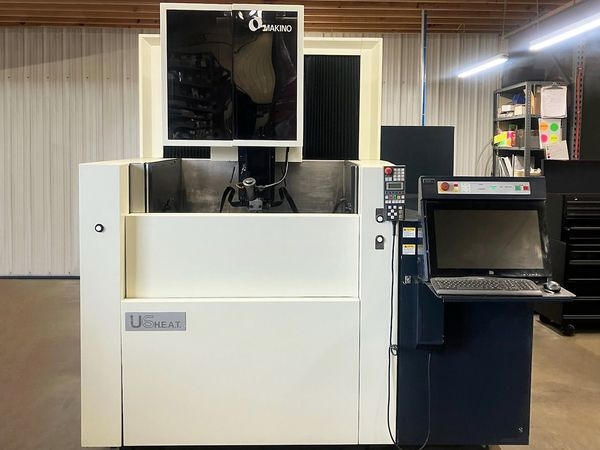

This 2014 MAKINO U6 HEAT EDM is a versatile CNC Wire machine that's perfect for cutting intricate shapes and tight corners. Designed for precision, it handles complex tasks with ease, making it a great choice for various manufacturing needs. This pre-owned unit is in good working condition and has been well-cared-for.

Featuring an intuitive control system, the MAKINO U6 HEAT EDM allows for straightforward operation. The machine's design focuses on ease of use, ensuring that operators can set up and run jobs with minimal hassle. This model supports a wide range of wire types, providing flexibility for different projects.

An important upgrade includes its advanced control interface, which gives operators more control over the machining process. This feature helps in achieving consistent and high-quality results, even on the most challenging materials. The machine's wire threading system is also reliable, reducing downtime and enhancing productivity.

The MAKINO U6 HEAT EDM comes equipped with several options that expand its capabilities. These features make it suitable for various industries, including aerospace, automotive, and toolmaking. Its robust construction and thoughtful engineering are designed to handle the demands of different manufacturing environments.

Also included is a friendly user manual, which provides a comprehensive guide on operation and care. This resource ensures that even new users can get up to speed quickly, making the transition to this machine smooth and straightforward.

Overall, this MAKINO U6 HEAT EDM represents a strong choice for those looking to add a wire EDM machine to their operations. Its combination of user-friendly features and reliable performance makes it a wise investment for businesses seeking quality results. This machine is ready to meet your manufacturing needs efficiently and effectively.
