Seller Needs:
$347,000|
250
|
0

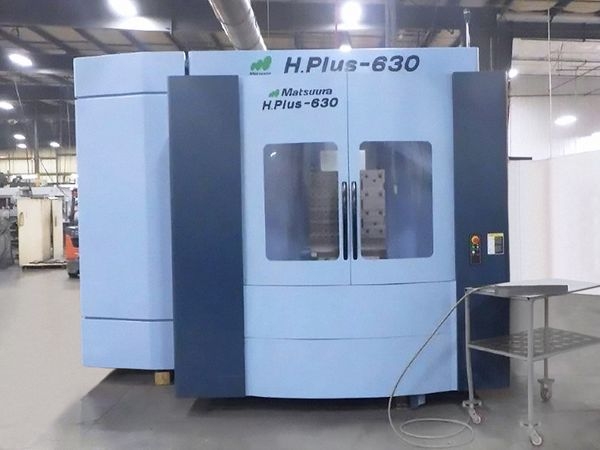

Pre-owned MATSUURA HPLUS 630 2014 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Matsuura G Tech 30i control. This CNC Machine is currently located in Arizona. Th...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 41.33"
Y Axis Travel: 36.22"
Z Axis Travel: 38.97"
Pallet Size: 24.8" x 24.8"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 2640 LBS
Spindle Speed: 12,000 RPM
Spindle Taper: 50 CT
Tool Changer: 120 ATC
Y Axis Travel: 36.22"
Z Axis Travel: 38.97"
Pallet Size: 24.8" x 24.8"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Max Pallet Load: 2640 LBS
Spindle Speed: 12,000 RPM
Spindle Taper: 50 CT
Tool Changer: 120 ATC
Options:
Matsuura G Tech 30i
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
Cooljet Hi-Pressure
Internal Spiral Conveyor
Overhead Coolant Flush System
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
Cooljet Hi-Pressure
Internal Spiral Conveyor
Overhead Coolant Flush System
Seller:
ScotB171
Location:
AZ
