Machine Overview

Specs:
X Axis Travel: 29.92"
Y Axis Travel: 33.26"
Z Axis Travel: 25.98"
Spindle Speed: 12,000 RPM
Spindle Taper: BT40 BIG Plus CT
Spindle Motor: 30 HP
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Tool Changer: 240 ATC
Max Pallet Load: 880 LBS
Pallet Size: 19.68" x 19.68"
Travel (A/C) ° -120+120 / 360

(2) 5 Axis Machines in this cell - 2005 & 2006
23 Pallet FMS System with shuttle
Options:
Matsuura G-Tech 31i
Chip Conveyor
Pallet Pool/FMS
5 Axis
Matsuura G-Tech 31i
23 Pallet FMS System with shuttle
Description:

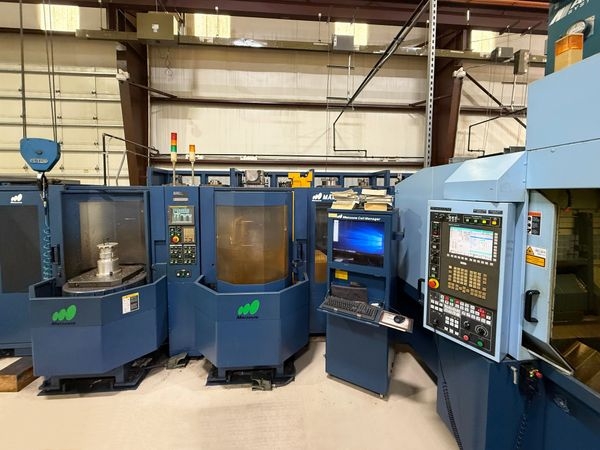

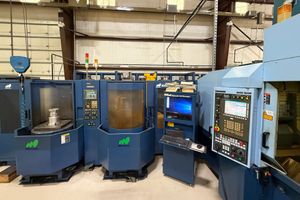

This 2006 MATSUURA MAM72-63V Horizontal Machining Center is a specialized tool designed for those seeking advanced machining capabilities. Equipped with a CNC Control: Matsuura G-Tech 31i, this machine brings refinement to your operations.

The machine includes a Chip Conveyor, ensuring smooth and hassle-free removal of materials during projects. The addition of a Pallet Pool/FMS elevates its functionality, providing dynamic adaptability to your production line.

The 5 Axis capability is integral for tackling complex machining tasks, delivering a level of precision for intricate designs. This model is engineered to optimize output with the Matsuura G-Tech 31i system, bolstering the machinery's command interface.

This unit is further enhanced by the 23 Pallet FMS System that includes a shuttle, streamlining workflow with advanced organization features. The system is crafted to support multifaceted tasks with enhanced automation.

Altogether, this 2006 Matsuura machining center offers flexibility and technological integration, meeting rigorous production needs in various settings.
