Hello!

Machine Overview

Specs:
Bar Capacity: 10.8"
Chuck Size: 24"
Spindle Speed: 3,000 RPM
X Axis Travel: 21.375"
Z Axis Travel: 123.2"
Max Turning Dia: 31.88"
Swing Over Carriage: 27.5"
Spindle Bore: 10.5"
Rotary Tool Speed: 3,000 RPM
Rotary Tool Motor: 15 HP
X2 Axis Travel (Lower Turret): 100.4"
C Axis Rotation: 0.001 Degrees
Lower Turret Positions: 8

Dimensions: 284" x 98" x 111"
Weight: 35,715 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL
N-EIA/ISO OPTION PACKAGE
Mazatrol and EIA/ISO Programming Language
12.1 inch Color TFT Display
Data Input/Output: I C Memory Card Interface (Download/Save Only)
RS-232 C
3.5" Floppy Disc Drive
PCMCIA I/F (2-SLOT, CARD BUS)
Program Registration (HD: 1GB for drip feed EIA/ISO)
(1MB for Mazatrol/EIA)
Variable Feed Rate Control (Mazatrol)
Tool Life Monitoring (Mazatrol)
Tool Wear Compensation (Mazatrol)
Tool Eye Measurement for Upper and Lower Turret (Mazatrol)
Mazak Tapping Tornado (Mazatrol)
8 Figure Program Number (EIA)
48 Alphanumeric Characters for Program Name (Mazatrol)
Barrier Protection (Set via Parameters)
Background Tool Path Check
Machining Navi-Monitor – Prediction/Monitor/ResultsSMW BB-N-600-275-3 Big Bore12.1″
COLOR LCD
Milling Spindle Synchronous Tapping
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
High Power Coolant 213 PSI/ 2.5 GPM
REAR CHUCK & CYL & SPIN JOG BUTTON
Re-ThreadingThread Point Start Comp
Description:

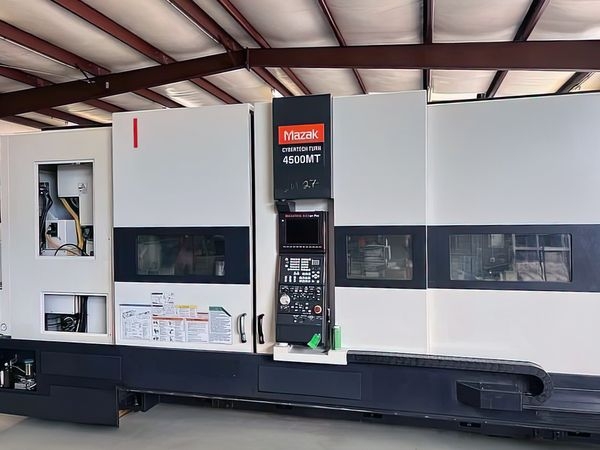

This 2007 MAZAK CYBERTECH TURN 4500MT CNC Lathe comes with some added features which make it a unique pick. These include a Chip Conveyor and Live Tooling. It has a MAZATROL PC-FUSION-CNC 640MT PRO CONTROL and N-EIA/ISO OPTION PACKAGE, which aid in handling the settings and movements of the machinery. Mazatrol and EIA/ISO Programming Language are also available which add to the functionality and control of the machine.

On the graphics side, a 12.1 inch Color TFT Display is available for clear viewing and tracking of the machinery process. Data can be put in and saved using an I C Memory Card Interface, RS-232 C, a 3.5" Floppy Disc Drive, or PCMCIA I/F with two slots for CARD BUS. The lathe features a huge space register for programs which includes a 1GB hard-drive for drip feed EIA/ISO, and 1MB for Mazatrol/EIA.

Also, to manage the feed rate, it comes with a Variable Feed Rate Control functionality and a lifespan tracking software for accessories, which is an additional feature of Mazatrol. It also features a tool wear reduction system, another Mazatrol innovation. All these features make it one of the best in its category.

In addition, tools can be measured using a Tool Eye Measurement system for both upper and lower turret, provided by Mazatrol. The tapping kit by Mazak, the Tapping Tornado, is also offered. It comes with an 8 Figure Program Number for EIA. You can also label a program with any of the 48 Alphanumeric Characters provided by Mazatrol.

There are more features like Barrier Protection, Background Tool Path Check, and Machining Navi-Monitor – these predict, monitor and show results. It is equipped with a SMW BB-N-600-275-3 Big Bore12.1″, COLOR LCD. To add more power, it comes with a Milling Spindle Synchronous Tapping device. Concerning safety, there is an OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH and HYDRAULIC PRESSURE INTERLOCK.

A High Power Coolant with a strength of 213 PSI and flow rate of 2.5 GPM is also part of its setup. The machine has a REAR CHUCK & CYL & SPIN JOG BUTTON and a feature for re-threading and thread point start compensation.
