Hello!

Machine Overview

Specs:
X Axis Travel: 22.05"
Y Axis Travel: 25.2"
Z Axis Travel: 25.2"
Spindle Speed: 18,000 RPM
Spindle Taper: 40 CT
Spindle Motor: 30 HP
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Tool Changer: 60 ATC
Max Pallet Load: 880 LBS
Pallet Size: 15.7" x 15.7"
Dimensions: 164" x 106" x 104"
Weight: 22,723 LBS
Options:
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
Mazatrol Matrix Nexus
2 Pallet Factory Changer
Super Flow Variable Speed High Pressure Coolant Through the Spindle - 1000 PSI
60 Station Tool Changer
Renishaw OMP60 Work Measuring Probe System
Auto Tool Length Measurement - Tool Probe
18,000 RPM Spindle
Manual Pulse Generator
EIA Input Function
Synchronous Tapping
USB Port Interface
RS 232 Port Interface
Multi Tap Transformer
Description:

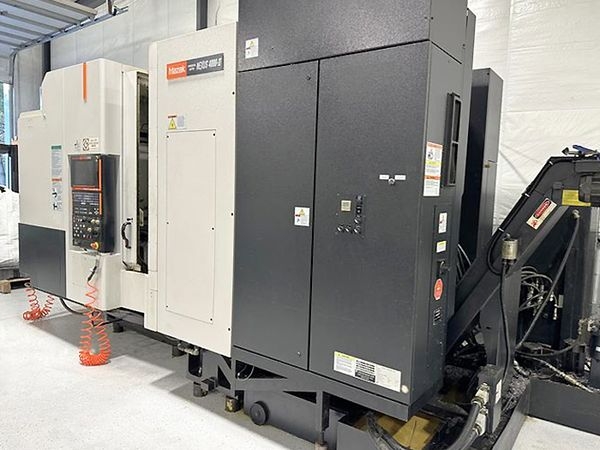

This 2008 MAZAK HCN4000II Horizontal Machining Center is a robust and versatile machine featuring many options and upgrades to meet your machining needs.

Equipped with a Chip Conveyor, this center ensures smooth and trouble-free chip removal. The 2 Pallet Factory Changer offers seamless switching between jobs, which saves time and boosts productivity. With a 60 Station Tool Changer, tool swaps are quick and easy, enhancing workflow.

The Spindle operates at an impressive 18,000 RPM, supporting high-speed machining tasks. Its Coolant Thru Spindle function, alongside the Super Flow Variable Speed High Pressure Coolant Through the Spindle at 1000 PSI, is designed to prolong the life of your tools and improve cutting conditions.

The Renishaw OMP60 Work Measuring Probe System and Auto Tool Length Measurement - Tool Probe provide precision and accuracy, making it easier to achieve consistent results. The 360,000 Full 4th axis adds a new level of flexibility, allowing complex parts to be produced more easily.

Controlled by the Mazatrol Matrix Nexus, the machine supports simple and complex programming. Its Manual Pulse Generator enables hands-on control for precise operations.

For easy connectivity and data management, this machine includes an EIA Input Function, USB Port Interface, and RS 232 Port Interface. Additionally, the Multi Tap Transformer ensures stable power supply.

Synchronous Tapping is available, enhancing threading operations by reducing cycle times. This feature is perfect for applications requiring high-precision threading.

This MAZAK Horizontal Machining Center is suited for businesses looking to expand their capabilities with a well-rounded, feature-rich machine that delivers on versatility and function.
