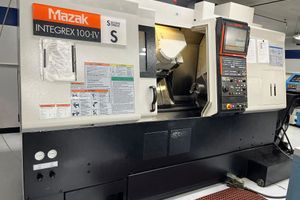

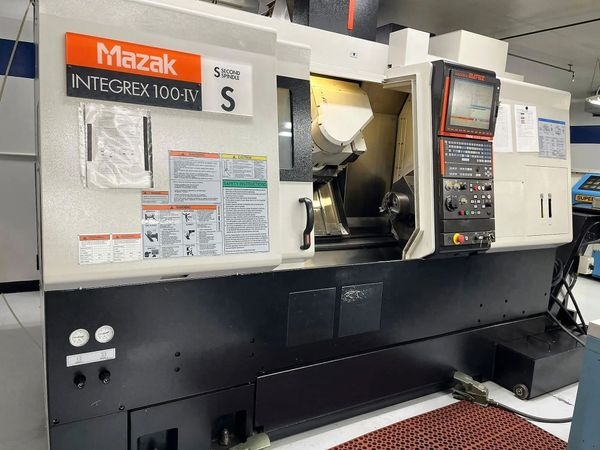

2005 MAZAK INTEGREX 100IVS

Bar Capacity: 2.45"
Chuck Size: 8"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 16.14"
Z Axis Travel: 31.69"
Rapid Rate Z Axis: 1,299 IPM
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.46"
Max Turning Length: 29.65"
Max Swing: 21.46"
Maximum Swing using Y-axis: 16.22"-21.46"
Maximum Swing over Cross Slide: 13.86"
Maximum Cutting Diameter: Chucking: 21.46"
Maximum Cutting Length: 29.65"
Maximum Distance Between Chuck Faces: 31.18"

Main Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4"
Maximum Bar Work: 1.625”
Spindle Index (Programmable): 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower: 10/15 HP (AC)
Spindle Torque: 119 ft-lbs.

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4"
Spindle Speed: 6,000 RPM
Spindle Index (Programmable): 0.0001 Deg.
Spindle Horsepower: 10/15 HP (AC)
Spindle Torque: 119 ft-lbs.

Turret & Tooling:
Type of Turret: 1 position w/ATC
Tool Shank Height: 3/4"
Tool Size (Boring Bar Max. Dia.): 1.25"
Tool to Tool ATC Time: 1.2 sec.
Max. Tool Dia. w/All Pockets Full: 2.76"
Max. Tool Dia. w/Adjacent Pockets Empty: 3.54"
Max. Tool Length (From Gage-Line): 7.87"
Maximum Tool Weight: 8.8 lbs.
Rotary Tool Spindle Speed: 12,000 RPM
Rotary Tool Spindle Horsepower: 7.5 HP (AC)
Rotary Tool Torque: 36.2 ft-lbs
Maximum Face Mill: 3"
Maximum End Mill: 1"
Maximum Drill: 1"
Maximum Tap: 5/8 UNC

Axis Travels:
B-Axis: 225 degrees (0.0001 degree increments)
Y-Axis: +/-2.75"
X-Axis: 16.14"
Z-Axis: 31.69"
Second Headstock W-Axis: 31.3"

Axis Rapid Rates:
Y-Axis: 1024 IPM
X-Axis: 1181 IPM
Z-Axis: 1299 IPM
Second Headstock W-Axis: 1181 IPM
C-Axis: 555 RPM

General:
Floor Space: 118.9" x 85.04"
Machine Height: 96.18"
Total Power Required (Machine Only): 32.9 KVA
Air Requirements: 72 PSI/24.7 CFM
Dimensions: 118.9" x 85.04" x 96.18"
Weight: 16,400 LBS

Mazatrol Matrix
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
EIA/ISO Code Input Function
GOO Slope Constant
Shape Compensation for Rotary Axes
Mazacc-2D Software (Shape Compensation)
Cylindrical & Polar Coordinate
Mill Spindle Synchronous Tapping
Inch/Metric Conversion
CARDBUS I/F (2-Slot)
LAN Port
USB I/F
Y-Axis Control
Cut Feeder
