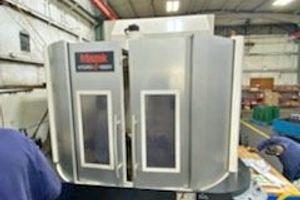

Used MAZAK INTEGREX 100IVST CNC Lathe
Pre-owned MAZAK INTEGREX 100IVST 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazak Matrix control. This CNC Machine is currently located in Florida. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX 100IVST before it's gone.
*Mitsubishi Refurbished Power Supply (1 Yr Warranty)
*Mitsubishi Refurbished Drive (1 Yr Warranty)
*New Hard Drive (Windows)
*New Drive batteries
Chuck (main / sub): 6" / 6" Hydraulic
Maximum Swing: 21.46"
Max Swing using Y Axis: 16.22" - 21.46"
Maximum Swing Over Cross Slide: 13.86"
Max Swing over lower Turret: 15.75"
Max Cutting Dia: Chucking: 21.46" Upper
Maximum Machining Length: 29.65"
Max Distance between Chuck Faces: 28.9"
Spindle Nose / Spindle Bore / Bar Cap: A2-5 / 2.4" / 1.65"
Main Spindle Speed: 6,000 rpm
Spindle Index (degrees) C Axis: 0.0001 degree
Spindle HP: 10 / 15 HP AC
Sub Spindle Nose / Bore: A2-5 / 2.4"
Sub Spindle Speed: 6,000 rpm
Sub Spindle Index: 0.001 degree
Sub Spindle HP: 10 / 15 HP AC
Upper Turret: 1 pos. w/ ATC
Magazine Capacity: 40 Positions - CAPTO
Rotary Tool Spindle HP / Speed: 7.5 HP / 12,000 RPM
Lower Turret: Drum Type
Lower Turret Positions: 9 Position Turret
B-Axis Travel - Pendulum Head: 225 Degrees
Y Axis Travels: +/- 2.75"
X Axis Travel: 16.14"
Z Axis Travel: 31.69"
X2 Axis Lower: 8.66"
Z2 Axis Lower: 30.71"
W Axis Travel - Subspindle: 31.3"
Machine Dimensions: 121.06" x 91.73" x 88.3"
Machine Weight: 18,078 lb
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
$145,500
