Seller Needs:
$79,500|
715
|
1

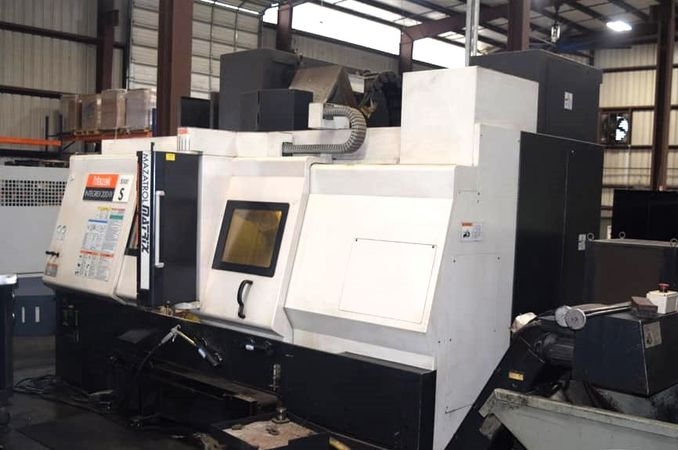

Pre-owned MAZAK INTEGREX 200-IIIS 2005 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazak Matrix control. This CNC Machine is currently located in Texas. This MAZAK CNC Lathe is available for a li...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2"
Spindle Bore: 2.99"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: AC 30HP HP
Turret Tools: 80 Station
Max Turning Dia: 26"
Max Turning Length: 40"
Max Swing: 26"
B Axis Head Tilt: 225°
C Axis Index: 0.001°
W Axis Travel: 41.34"
Tool Changer: 40 ATC
LIVE TOOLING:
Y Axis Travel: 6.3"
Live Tooling Speed: 12,000 RPM
Live Tooling Motor: 25 HP
Live Tooling Spindle Taper KM63 or Capto
SUB SPINDLE:
Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Sub Spindle Motor: 25 HP
Dimensions: 150.39" x 92.44" x 102"
Weight: 19,140 LBS
Spindle Bore: 2.99"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: AC 30HP HP
Turret Tools: 80 Station
Max Turning Dia: 26"
Max Turning Length: 40"
Max Swing: 26"
B Axis Head Tilt: 225°
C Axis Index: 0.001°
W Axis Travel: 41.34"
Tool Changer: 40 ATC
LIVE TOOLING:
Y Axis Travel: 6.3"
Live Tooling Speed: 12,000 RPM
Live Tooling Motor: 25 HP
Live Tooling Spindle Taper KM63 or Capto
SUB SPINDLE:
Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Sub Spindle Motor: 25 HP
Dimensions: 150.39" x 92.44" x 102"
Weight: 19,140 LBS
Options:
Mazak Matrix
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Simultaneous 5-Axes
F)Tool Tip Point Control /Simult. 5-Axis
F)Tool Radius Compensation/ 5-AXIS
Auto Power ON/OFF + Warm-up
Auto Pecking Cycle with Load Detection
Re-Threading Function
Thread Start Point Compensation
Prep for Visual Tool ID/Data Management/for 80 KM Mag
1st SPDL&MILL SPNDL Ind. Rotation (REQ EIA)
Preparation for Multi & Flash System
10″ Chuck B-210A615/4200RPM (1st Spindle) Thru-Hole CYL.S1875
8″ Chuck B-208 2nd Spindle with Non-Thru Hole CYL. Y-1225
F)EIA/ISO Function
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Simultaneous 5-Axes
F)Tool Tip Point Control /Simult. 5-Axis
F)Tool Radius Compensation/ 5-AXIS
Auto Power ON/OFF + Warm-up
Auto Pecking Cycle with Load Detection
Re-Threading Function
Thread Start Point Compensation
Prep for Visual Tool ID/Data Management/for 80 KM Mag
1st SPDL&MILL SPNDL Ind. Rotation (REQ EIA)
Preparation for Multi & Flash System
10″ Chuck B-210A615/4200RPM (1st Spindle) Thru-Hole CYL.S1875
8″ Chuck B-208 2nd Spindle with Non-Thru Hole CYL. Y-1225
F)EIA/ISO Function
Seller:
JasoS880
Location:
TX
