Home / CNC Lathe / MAZAK / INTEGREX 200SY / 8179
Posted By LarrS119
BUY NOW
us-flag
Located In Ohio
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 20.87"
Z Axis Travel: 41.92"
Turret Tools: 40 Station
Max Turning Length: 40"
Max Swing: 21.26"
Y-Axis Travel (Y1, Y2, Y3) +/- 2.75"
Main Spindle Bore Diameter 2.4"
Main Spindle Maximum Bar Work 2"
Main Spindle Horsepower (CONT. /30 MINS) 20/ 30
Sub Spindle/2nd Spindle Chuck Size 8
Sub Spindle/2nd Spindle Bore Size 1.73"
Sub Spindle/2nd Spindle Chuck Type Hydraulic
Sub Spindle/2nd Spindle Speed 5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) 10


Options:
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Description:

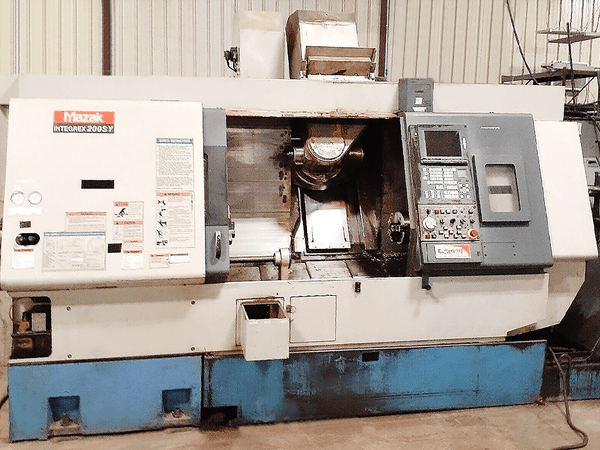

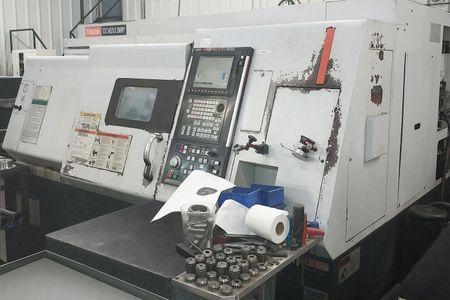

Presenting a 1999 MAZAK INTEGREX 200SY CNC Lathe, a remarkable machine that can serve a range of machining needs. Regrettably, the decision has been made to shut down the shop, making this outstanding piece of equipment available for purchase.
This MAZAK INTEGREX 200SY CNC Lathe is under power and ready for inspection, showcasing its ability to handle various machining tasks. The machine is in good working condition, with no known issues, offering you peace of mind when considering this purchase.
A wide array of options and upgrades have been added to enhance the performance and functionality of this CNC lathe. Among these features are a chip conveyor, designed to maintain a clean and organized workspace, and a tool presetter, which helps streamline the setup process and improve overall efficiency.
Additionally, the machine is equipped with a parts catcher, a useful accessory that allows for the safe and organized retrieval of finished parts. Live tooling is also incorporated, enabling the execution of both milling and turning operations without needing to reposition the workpiece. This feature not only saves time but also increases accuracy and consistency.
This machine also boasts a sub-spindle, which allows for the simultaneous machining of two parts or the completion of secondary operations without having to remove the workpiece from the machine. This feature can significantly reduce cycle times and improve productivity. The Y-axis functionality further expands the lathe's versatility, providing off-center machining capabilities and facilitating more complex part geometries.
Overall, it is a top-tier choice for any shop or production facility in search of a versatile and high-performance machining solution. Don't miss this opportunity to acquire a valuable asset that can elevate your manufacturing capabilities.
