Seller Needs:
$136,500|
3762
|
8

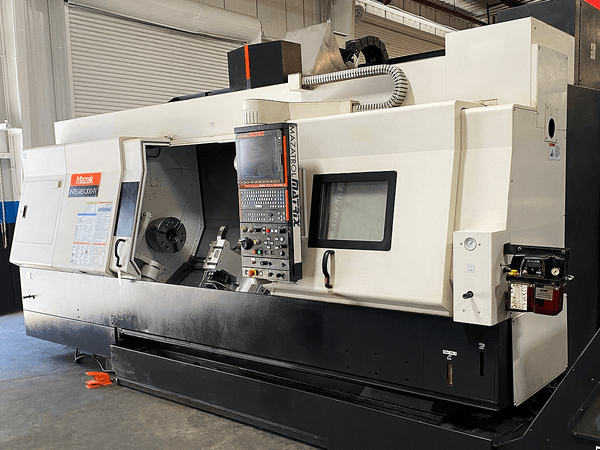

Pre-owned MAZAK INTEGREX 100IVST 2008 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This MAZAK CNC Lathe is available for a limited time. ...Read More
Seller Needs:
Payment:
Specs:
X-Travel: 25"
Z-Travel: 62"
Max Swing Over Bed: 30"
Max Turning / Cutting Length: 60"
Max Cutting / Turning Diameter: 30"
Rapid Traverse: 1496 IPM
SPINDLE
Bar Capacity: 3.00"
Chuck Size: 10"
Chuck Description: 3-Jaw
Spindle Bore: 4"
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
SECOND SPINDLE
Total Spindles: 2
Sub-Spindle: Equipped With
Second Bar Capacity: 3.00"
Second Chuck Size: 10"
Second Chuck Description: 3-Jaw
Second Spindle Bore: 4"
Second Spindle Speed: 4000 RPM
Second Spindle Motor: 35 HP
TURRET
Tool Positions: 40
Turret Options: KM63 Spindle Taper
Live Milling Max RPM: 12,000 RPM
CONTROL
Control Make/Model: Mazatrol Matrix CNC Control
OPTIONS
Machine Options: Parts Catcher;Tool Presetter
Additional Machine Specs: 7-Axis Machining
C-Axis Indexing
B-Axis
Y-Axis Travel: +/- 4.13"
Overall Dimensions: 193.4? x 93.0? x 110.2? High
Weight: 25,740 LBS. Approx.
Maximum diameter of work the steady rest can accommodate: 6.49"
Z-Travel: 62"
Max Swing Over Bed: 30"
Max Turning / Cutting Length: 60"
Max Cutting / Turning Diameter: 30"
Rapid Traverse: 1496 IPM
SPINDLE
Bar Capacity: 3.00"
Chuck Size: 10"
Chuck Description: 3-Jaw
Spindle Bore: 4"
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
SECOND SPINDLE
Total Spindles: 2
Sub-Spindle: Equipped With
Second Bar Capacity: 3.00"
Second Chuck Size: 10"
Second Chuck Description: 3-Jaw
Second Spindle Bore: 4"
Second Spindle Speed: 4000 RPM
Second Spindle Motor: 35 HP
TURRET
Tool Positions: 40
Turret Options: KM63 Spindle Taper
Live Milling Max RPM: 12,000 RPM
CONTROL
Control Make/Model: Mazatrol Matrix CNC Control
OPTIONS
Machine Options: Parts Catcher;Tool Presetter
Additional Machine Specs: 7-Axis Machining
C-Axis Indexing
B-Axis
Y-Axis Travel: +/- 4.13"
Overall Dimensions: 193.4? x 93.0? x 110.2? High
Weight: 25,740 LBS. Approx.
Maximum diameter of work the steady rest can accommodate: 6.49"
Options:
Mazak Matrix
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
JoeC461
Location:
CA
