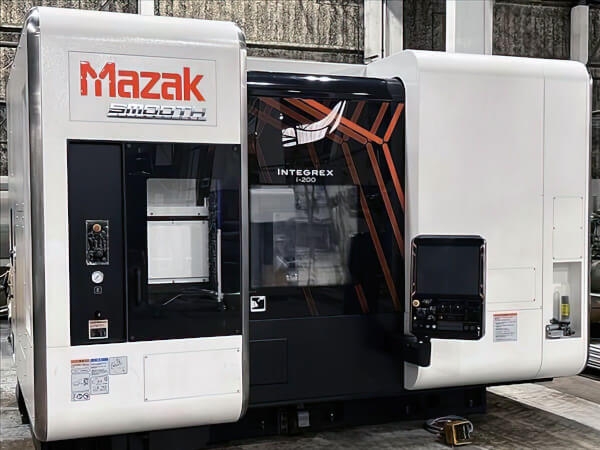

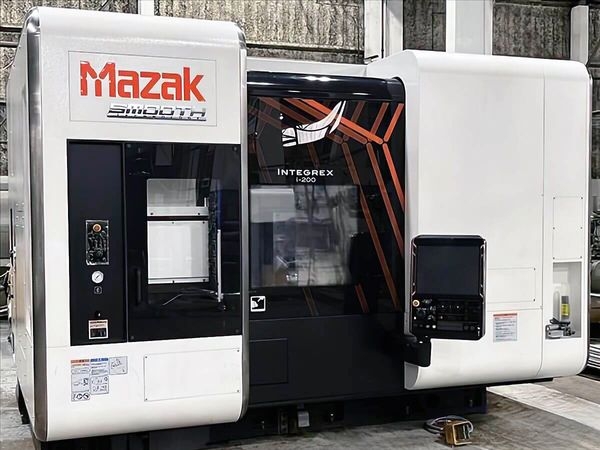

2018 MAZAK INTEGREX i200
- ID:13339
- Brand:MAZAK
- Model: INTEGREX i200
- Year:2018
- Category:CNC Lathe
- Location:USA
Machine Overview
This 2018 MAZAK INTEGREX i200 offers advanced machining capabilities suitable for various applications. It features a swing over bed and turning diameter of 25.9 inches, combined with a turning length of 39.8 inches, allowing for versatile operation on different workpieces.
The machine is equipped with an 8-inch chuck size and a spindle nose classified as A2-6. The spindle bore diameter measures 2.99 inches, providing a bar capacity of 2.56 inches. With a spindle speed of 5000 RPM and a power output of 30 hp, it supports a variety of machining tasks.
The B-Axis travel reaches 240 degrees, featuring a milling spindle speed of 12,000 RPM and a power output of 30 hp. The spindle includes an automatic tool changer (ATC) for the milling spindle with a capacity of 36 tools. It accommodates tool diameters up to 4.92 inches and tool lengths of 15.75 inches.
Travel dimensions for each axis are: X-Axis 24.21 inches, Z-Axis 42.4 inches, Y-Axis 10.24 inches, and W-Axis 40.4 inches. Rapid traverse rates for these axes are as follows: X and Z-Axis at 1969 inches per minute (IPM), Y-Axis at 1575 IPM, and W-Axis at 315 IPM.
This machine measures 156 inches in length, 110 inches in width, and 105 inches in height, with a weight of 30,000 pounds. It is designed to handle demanding CNC tasks with precision and efficiency.
