Machine Overview

Specs:
Bar Capacity: 2.5"
Chuck Size: 10"
Spindle Speed: 4,200 RPM
Spindle Motor: 30 HP
X Axis Travel: 24.21"
Z Axis Travel: 62.4"
Rapid Rate Z Axis: 1,969 IPM
Turret Tools: 36 Station
Rapid Rate X Axis: 1,969 IPM
Max Turning Dia: 25.9"
Max Turning Length: 59.8"
Max Swing: 25.9"
Max. Turning Diameter (lower): 16.54"
Bar Capacity (sub spindle): 2.5"
Y Axis Travel: 9.84"
X2 Axis Travel: 9.05"
Z2 Axis Travel: 54.65"
B Axis Travel: 30-210 degrees
Main Spindle Nose: A2-8
Main Spindle Bore: 2.99"
Main Spindle Indexing: 0.0001 degrees
Sub Spindle Chuck Size: 8"
Sub Spindle Speed: 5,000 RPM
Sub Spindle Travel (W Axis): 60.6"
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.99"
Sub Spindle Indexing 0.0001 degrees
Milling Spindle Speed: 12,000 RPM
Lower Turret Tool Capacity: 9 Stations
Dimensions: 193.3" x 110.2" x 107"
Weight: 35,596 LBS
Options:
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
MAZATROL MATRIX 2 CNC CONVERSATIONAL CONTROL
SIMULTANEOUS 5 AXIS CAPABILITY
1000 PSI" SUPER FLOW PUMPS
COOLANT THROUGH SPINDLE
LOWER 9 POSITION DRUM TURRET
19" COLOR LCD
EIA/ ISO CODE INPUT FUNCTION
3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT
CYLINDRICAL AND POLAR COORDINATE
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA 1ST SPINDLE & MILL SPINDLE SIMULTANEOUS ROTATION
ROLLER GUIDE
ABSOLUTE POSITIONING SYSTEM - LINEAR AXES
X Y Z PITCH ERROR COMPENSATION INPUT
FLOOD COOLANT SIMUL-FLOW
10" CHUCK B-210A615 (1ST SPINDLE)
8" CHUCK B-208 (2ND SPINDLE)
B-AXIS 0.0001 DEGREE CONTOURING
AUTOMATIC TOOL EYE (MAIN AND SUB)
AUTO CHUCK JAWS OPEN/ CLOSE
Description:

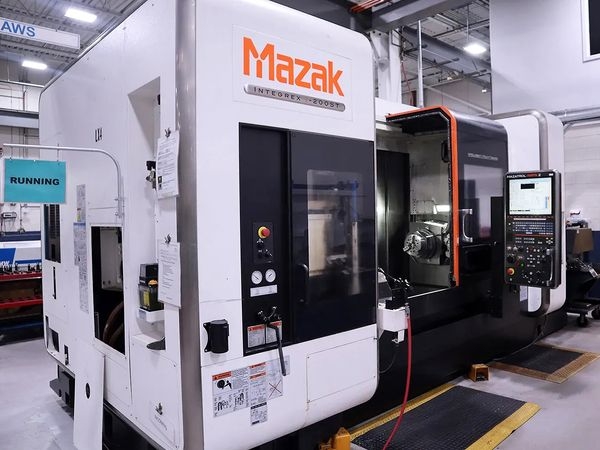

This 2011 MAZAK INTEGREX I200ST CNC Lathe is an impressive piece of machinery designed for versatility in machining tasks. It features a Chip Conveyor and Tool Presetter, crucial for streamlining operations and ensuring optimal function during complex tasks. Additionally, the included Parts Catcher adds convenience by efficiently managing finished components.

The Live Tooling and Sub Spindle options offer enhanced flexibility, allowing for a wider range of operations. Complemented by its Y Axis and 5 Axis capabilities, this lathe is well-equipped for intricate projects requiring precision and intricate detail work.

Central to the machine is the MAZATROL MATRIX 2 CNC Conversational Control. This interface aids in effective programming and device management. Ensuring precise and dynamic operations, the lathe boasts Simultaneous 5 Axis Capability, supported by "1000 PSI" Super Flow Pumps and Coolant Through Spindle features that maintain optimal tool and material interaction.

The lathe is further equipped with a Lower 9 Position Drum Turret, a 19" Color LCD, and EIA/ISO Code Input Function, ensuring a comprehensive operational experience. The presence of 3-D Coordinate Conversion enhances machining flexibility, while G00 Slope Constant and Cylindrical and Polar Coordinate capabilities facilitate complex tasks.

Milling-Spindle Synchronous Tapping is integrated, allowing for seamless and efficient tapping processes. The EIA 1st Spindle & Mill Spindle Simultaneous Rotation feature adds to the tool's operational scope, supported by Roller Guide and Absolute Positioning System for Linear Axes, ensuring consistent accuracy and alignment.

The X Y Z Pitch Error Compensation Input ensures precise calibration for improved accuracy. The Flood Coolant Simul-Flow feature adds to the user experience by controlling temperature and removing debris to prevent any build-up obstacles.

For handling components, the lathe includes a 10" Chuck B-210A615 on the 1st Spindle and an 8" Chuck B-208 on the 2nd Spindle, allowing diverse application use. An advanced B-Axis with 0.0001 Degree Contouring further emphasizes its precision capabilities.

Emphasizing user-friendliness, the Automatic Tool Eye for both Main and Sub ensures rapid tool setup and verification. With the Auto Chuck Jaws Open/Close feature, user interaction is simplified, reducing setup time and enhancing productivity.
