Seller Needs:
$199,500|
17
|
0

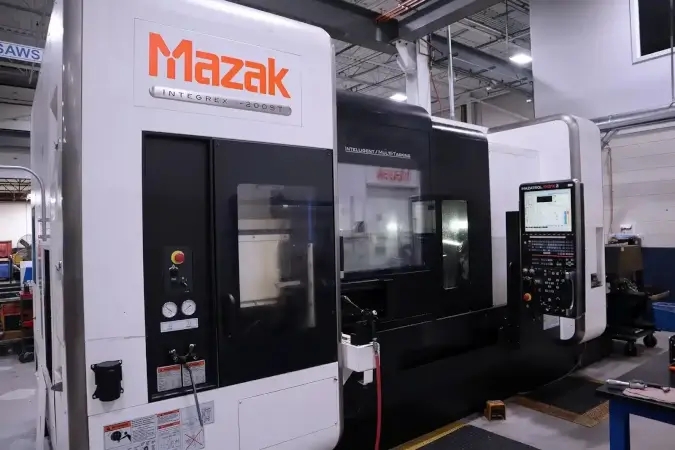

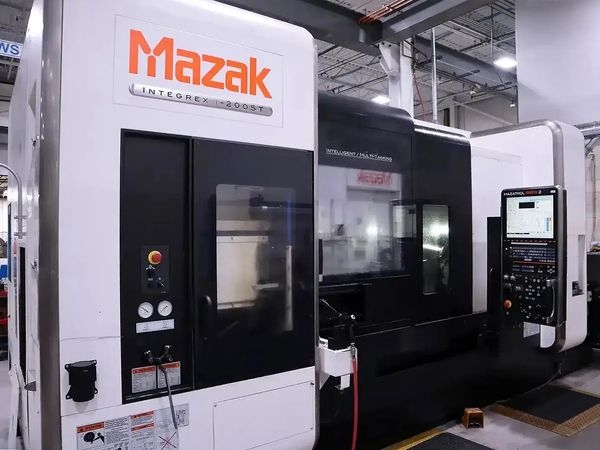

This 2011 MAZAK INTEGREX I200ST is a versatile piece of equipment that combines features for advanced machining capabilities. With essential options included such as a Chip Conveyor, Live Tooling, Sub Spindle, and Y Axis, thi...Read More
Seller Needs:
Payment:
Specs:
MAZAK INTEGREX i200STSPECIFICATIONS
HEIGHT 107
WEIGHT 35,596 lbs
FLOOR SPACE 193.3 X 110.2
X-AXIS TRAVEL 24.21
Y AXIS TRAVEL 9.84
Z-AXIS TRAVEL 62.4
MAX SWING 25.9
MAX. MACHINING DIA (UPPER TURRET) 25.9
MAX. MACHINING DIA (LOWER TURRET) 16.54
MAX. MACHINING LENGTH 59.8
MAX. BAR WORK CAPACITY (MAIN SPINDLE) 2.5
MAX. BAR WORK CAPACITY (SECOND SPINDLE) 2.5
X2-AXIS TRAVEL (LOWER TURRET) 9.05
Z2-AXIS TRAVEL (LOWER TURRET) 54.65
B-AXIS TRAVEL 30 DEG 210 DEG
MAIN SPINDLE SPEED 4600 RPM
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE CAPACITY 2.99
MAIN SPINDLE BAR CAPACITY 2.5
MAIN SPINDLE INDEXING 0.0001 DEG
SECOND SPINDLE CHUCK SIZE 8
SECOND SPINDLE SPEED 5000 RPM
SECOND SPINDLE TRAVEL (W-AXIS) 60.6
SECOND SPINDLE NOSE/ BORE A2-6
SECOND SPINDLE BORE 2.99
SECOND SPINDLE 0.0001 DEG
MILLING SPINDLE SPEED 1200 RPM
MAX. MILLING SPINDLE TORQUE 120 NM
TOOL SHANK HEIGHT 1
MIN MILLING SPINDLE INDEXING INC 0.0001 DEG
LOWER TURRET TYPE 9 POSITION DRUM TURRET
NUMBER OF TOOLS 9
RAPID TRAVERSE RATE X-AXIS 1,969 ipm
RAPID TRAVERSE RATE Y-AXIS 1,575 ipm
RAPID TRAVERSE RATE Z-AXIS 1,969 ipm
RAPID TRAVERSE RATE X2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE Z2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE W-AXIS 1,181 ipm
TOOL SHANK CAPTO C5
TOOL STORAGE CAPACITY 36 TOOLS
MAX. TOOL WEIGHT 5.45
FLOOR SPACE REQUIREMENT 193.3 X 110.2
BORING BAR SHANK DIAMETER 1.575
MAIN SPINDLE CHUCK SIZE 8OPTIONS / EQUIPPED WITH
MAZATROL MATRIX 2 CNC CONVERSATIONAL CONTROL SIMULTANEOUS 5-AXIS CAPABILITY
COOLANT THRU SPINDLE (300PSI) LOWER TURRET
CHIP CONVEYOR 19 COLOR LCD
EIA/ ISO CODE INPUT FUNCTION 3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT CYLINDRICAL AND POLAR COORDINATE
MILLING-SPINDLE SYNCHRONOUS TAPPING EIA 1ST SPINDLE & MILL SPINDLE SIMULTANEOUS ROTATION
C-AXIS 0.0001 DEGREE INC 1ST SPINDLE ROLLER GUIDE
Y AXIS ABSOLUTE POSITIONING SYSTEM LINEAR AXES
X Y Z PITCH ERROR COMPENSATION INPUT FLOOD COOLANT SIMUL-FLOW
2ND SPINDLE SPEED 5000RPM 2ND SPINDLE C-AXIS WITH C1-C2 0.0001 DEGREE INCR
8 THRU-HOLE CHUCK B-208 (1ST SPINDLE) 8 THRU HOLE CHUCK B-208 (2ND SPINDLE)
36 CAPTO TOOL MAGAZINE ROTARY TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEGREE CONTOURING LOWER 9 POSITION DRUM TURRET
AUTOMATIC TOOL EYE (MAIN AND SUB SPINDLE) AUTO CHUCK JAWS OPEN/ CLOSE
HEIGHT 107
WEIGHT 35,596 lbs
FLOOR SPACE 193.3 X 110.2
X-AXIS TRAVEL 24.21
Y AXIS TRAVEL 9.84
Z-AXIS TRAVEL 62.4
MAX SWING 25.9
MAX. MACHINING DIA (UPPER TURRET) 25.9
MAX. MACHINING DIA (LOWER TURRET) 16.54
MAX. MACHINING LENGTH 59.8
MAX. BAR WORK CAPACITY (MAIN SPINDLE) 2.5
MAX. BAR WORK CAPACITY (SECOND SPINDLE) 2.5
X2-AXIS TRAVEL (LOWER TURRET) 9.05
Z2-AXIS TRAVEL (LOWER TURRET) 54.65
B-AXIS TRAVEL 30 DEG 210 DEG
MAIN SPINDLE SPEED 4600 RPM
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE CAPACITY 2.99
MAIN SPINDLE BAR CAPACITY 2.5
MAIN SPINDLE INDEXING 0.0001 DEG
SECOND SPINDLE CHUCK SIZE 8
SECOND SPINDLE SPEED 5000 RPM
SECOND SPINDLE TRAVEL (W-AXIS) 60.6
SECOND SPINDLE NOSE/ BORE A2-6
SECOND SPINDLE BORE 2.99
SECOND SPINDLE 0.0001 DEG
MILLING SPINDLE SPEED 1200 RPM
MAX. MILLING SPINDLE TORQUE 120 NM
TOOL SHANK HEIGHT 1
MIN MILLING SPINDLE INDEXING INC 0.0001 DEG
LOWER TURRET TYPE 9 POSITION DRUM TURRET
NUMBER OF TOOLS 9
RAPID TRAVERSE RATE X-AXIS 1,969 ipm
RAPID TRAVERSE RATE Y-AXIS 1,575 ipm
RAPID TRAVERSE RATE Z-AXIS 1,969 ipm
RAPID TRAVERSE RATE X2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE Z2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE W-AXIS 1,181 ipm
TOOL SHANK CAPTO C5
TOOL STORAGE CAPACITY 36 TOOLS
MAX. TOOL WEIGHT 5.45
FLOOR SPACE REQUIREMENT 193.3 X 110.2
BORING BAR SHANK DIAMETER 1.575
MAIN SPINDLE CHUCK SIZE 8OPTIONS / EQUIPPED WITH
MAZATROL MATRIX 2 CNC CONVERSATIONAL CONTROL SIMULTANEOUS 5-AXIS CAPABILITY
COOLANT THRU SPINDLE (300PSI) LOWER TURRET
CHIP CONVEYOR 19 COLOR LCD
EIA/ ISO CODE INPUT FUNCTION 3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT CYLINDRICAL AND POLAR COORDINATE
MILLING-SPINDLE SYNCHRONOUS TAPPING EIA 1ST SPINDLE & MILL SPINDLE SIMULTANEOUS ROTATION
C-AXIS 0.0001 DEGREE INC 1ST SPINDLE ROLLER GUIDE
Y AXIS ABSOLUTE POSITIONING SYSTEM LINEAR AXES
X Y Z PITCH ERROR COMPENSATION INPUT FLOOD COOLANT SIMUL-FLOW
2ND SPINDLE SPEED 5000RPM 2ND SPINDLE C-AXIS WITH C1-C2 0.0001 DEGREE INCR
8 THRU-HOLE CHUCK B-208 (1ST SPINDLE) 8 THRU HOLE CHUCK B-208 (2ND SPINDLE)
36 CAPTO TOOL MAGAZINE ROTARY TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEGREE CONTOURING LOWER 9 POSITION DRUM TURRET
AUTOMATIC TOOL EYE (MAIN AND SUB SPINDLE) AUTO CHUCK JAWS OPEN/ CLOSE
Options:
Mazatrol
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
AnikP283
Location:
USA
