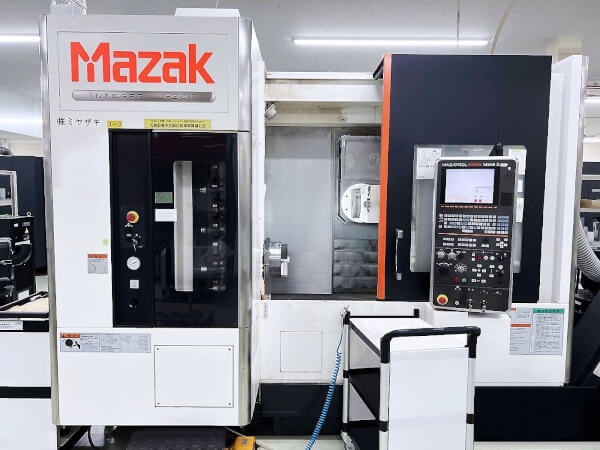

MAZAK INTEGREX J200 20IN CNC Lathe

MAXIMUM SWING 20.87"
MAX TURNING DIAMETER 19.69"
MAIN SPINDLE BORE 2.44"
MAX BAR CAPACITY 2.0
MAXIMUM CUTTING LENGTH 19.69"
X AXIS TRAVEL 17.72 (X1, X2, X3)
Z AXIS TRAVEL 21.65 (Z1, Z2, Z3)
Y AXIS TRAVEL 7.87 (Y1, Y2, Y3)
MAIN SPINDLE CHUCK 8"
MAIN SPINDLE CHUCK TYPE Hydraulic
MAIN SPINDLE BORE DIAMETER 2.44"
MAIN SPINDLE BAR CAPACITY 2"
MAIN SPINDLE SPEED 5,000 rpm
MAIN SPINDLE HORSEPOWER (CONT. /30 MINS) 15
ATC MAGAZINE CAPACITY 36
B AXIS ROTARY TOOL SPINDLE SPEED 12000 rpm
B-AXIS ROTARY TOOL SPINDLE HORSEPOWER 10 hp
MILLING SPINDLE SYNCHRONOUS TAPPING Yes
TOOL EYE AUTOMATIC FRONT SPINDLE yes
PARTS CATCHER Yes
COOLANT THRU MILLING HEAD yes
MULTI TAP TRANSFORMER yes
WEIGHT 13,530 LBS

MAIN SPINDLE 0.0001
C AXIS
Y AXIS
MILL SPINDLE THROUGH COOLANT
B AXIS 1 DEGREE
COOLANT SYSTEM
INTELLIGENT THERMAL SHIELD
NC TAIL STOCK
CAPTO ATC 36
TOOL EYE
MIST COLLECTOR
CHIP CONVEYOR
KITAGAWA CHUCK B210A615A (MAXIMUM RPM 4200)
TOUCH PROBE

Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
