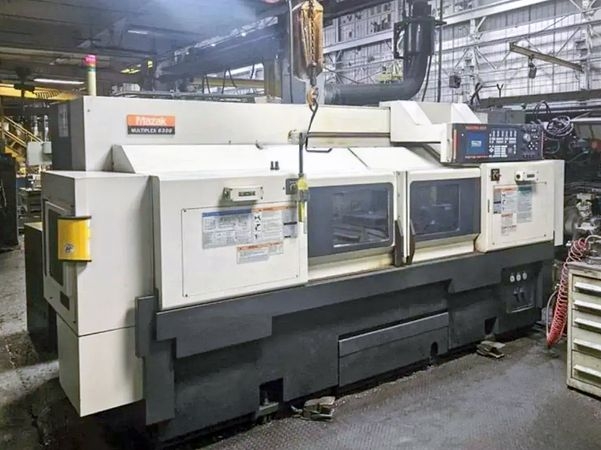

2006 MAZAK MULTIPLEX 6300

This 2006 MAZAK MULTIPLEX 630 is a versatile machine available for purchase, equipped with essential features that enhance its functionality in various machining tasks.

Included with the machine are options such as a Chip Conveyor to manage debris, a Tool Presetter for precise setup, and both Y and 5 Axis capabilities, ensuring a range of motion and versatility that meets complex machining needs.

Key specifications of this machine include a 12.2" X-Axis and a 23.82" Z-Axis, accommodating intricate tasks with ease. The machine has a swing of 16.93" and can handle a machining length of 25.59". It supports a bar capacity of 3.03" and utilizes a 12" chuck size. With a motor providing up to 30 horsepower, it achieves a maximum RPM of 4,000, making it apt for a range of applications.

Further details include a turning diameter of 16.93", enabling work on substantial sizes, and 12 turret stations per two turrets, allowing multiple tool attachments. The machine boasts dimensions of 168" x 96" x 86" and weighs 26,400 lbs.

The MAZAK MULTIPLEX 630 is equipped with notable features such as the MAZAK Mazatrol 640T CNC Control, which governs operations for both C-Axes on the spindles. Additionally, it is fitted with High Pressure Coolant, providing necessary cooling during intense operation, and includes a Tool Setter to further aid in setup efficiency.
