Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.2"
Z Axis Travel: 23.82"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 16.93"
Max Turning Length: 25.6"
Max Swing: 16.93"
Standard Cutting Diameter: 13"
Max. Cutting Length (Chuckwork): 8.86"
Max. Distance Between Spindle Faces: 57.09"
Min. Distance Between Spindle Faces: 9.82"
Spindle Nose: A2-8
Spindle Bore: 3.46"
Spindle Indexing (C Axis): 0.001 Degrees
Number of Turrets: 2
Rotary Tool Available Positions: 12 (Per Turret)
Mill Spindle Speed: 4,000 RPM
Y Axis Travel: +-3"

Dimensions: 168" x 96" x 86"
Weight: 26,400 LBS
Options:
Mazatrol
Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Description:

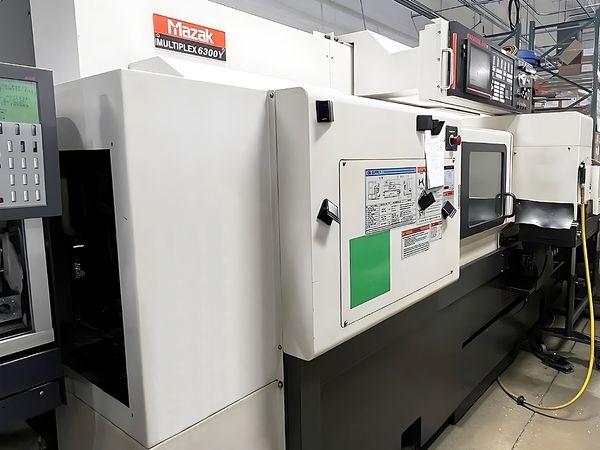

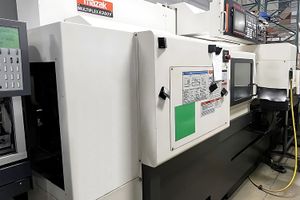

This 2007 MAZAK MULTIPLEX 6300Y is among the leading used machines in the market. It may not be brand new, but it operates with remarkable quality, sure to satisfy your industrial needs. While its body showcases visible signs of use, the important features are in good working order.

The 2007 MAZAK MULTIPLEX 6300Y offers two turrets and two spindles. This feature ensures simultaneous machining on both ends of the part, delivering more output in a unit of time. The machine also features an automatic tool eye and parts catcher, designed to ease your work process. Though a decade old, this machine's parts are easily available and it operates without hassle for long periods.

What makes this machine quite attractive is its Y-axis capability. This allows the machine to perform drilling and milling operations, apart from the traditional turning. Thus, this single machine can do a host of tasks that otherwise would require a multitude of machines. It also has a high-speed rotary tool that is perfect for those looking for a quick and accurate cut.

While this machine handles complex tasks, its ease of use is surprising. The user interface is friendly and does not need an expert to operate. Furthermore, the 2007 MAZAK MULTIPLEX 6300Y comes with an attached manual that covers everything needed to operate the machine effectively.

A point to note about this machine is that it's quite simple to clean. The design allows for easy access to parts, making cleanup less of a chore. The machine also comes with an inbuilt cooling system which helps to keep the machine from overheating. Thus, this machine has been designed with user comfort in mind.

In terms of size, the 2007 MAZAK MULTIPLEX 6300Y occupies a decent floor space. It doesn't take up an entire room but also isn't small enough to be overlooked.

After taking this tour of the 2007 MAZAK MULTIPLEX 6300Y, it is clear this machine is a great addition to your industrial equipment. Though it's a used model, it demonstrates a commendable performance which won't let you down.
