Machine Overview

Specs:
Bar Capacity: 2.75"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.125"
Z Axis Travel: 20.125"
Rapid Rate Z Axis: 1,300 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 11.81"
Max Turning Length: 17.5"
Max Swing: 17.32"
Weight: 9,600 LBS
Options:
Mazatrol T-Plus
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Complete Tool roll around Cabinet
Chip Conveyor
Programmable Tailstock
Carbide Inserts for Tooling
1/4 TO 2" COLLET PAD JAWS IN 1/4 INCREMENTS
COLLET PAD JAWS
Griffo Brothers Program
Description:

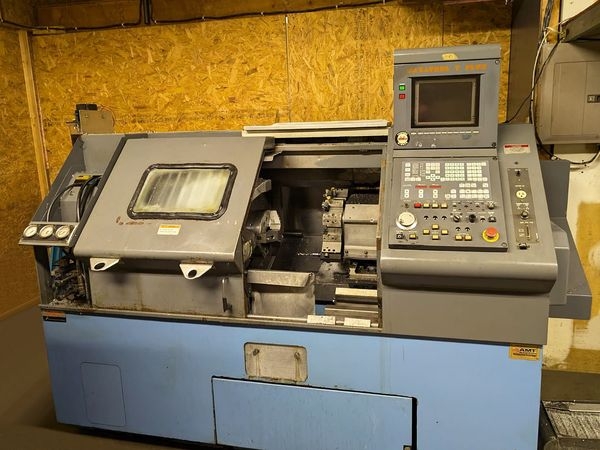

This 1998 MAZAK QT20 CNC Lathe is a robust and flexible machine designed to handle a wide range of machining tasks with precision. Its CNC Control is powered by the Mazatrol T-Plus, offering a user-friendly interface for a straightforward programming experience.

The machine comes equipped with essential options and upgrades to enhance its functionality. It includes a Chip Conveyor to effectively manage waste and maintain a clean operating environment. The Tool Presetter is included to ensure quick and accurate tool measurements, improving the setup time and consistency of operations.

This lathe also features a Tailstock which provides additional support, suitable for working on longer workpieces and ensuring stability during operation. The Parts Catcher option allows for smooth handling of finished pieces, minimizing downtime.

For storage and easy access to tools, there is a Complete Tool Roll Around Cabinet included. The Programmable Tailstock adds further convenience, offering automated control to adjust according to the specific requirements of the task at hand.

Additionally, it is equipped with Carbide Inserts for tooling, optimizing the lathe’s capability to handle tougher materials and achieve a higher-quality finish. The machine also includes a variety of collet pad jaws, specifically 1/4 to 2" collet pad jaws in 1/4” increments, providing versatility and adaptability for different job sizes.

The Griffo Brothers Program integration makes programming and data transfers more fluid, allowing operators to leverage advanced software features for improved productivity.

This MAZAK QT20 CNC Lathe is ideal for shops looking to upgrade or expand their machining capabilities without compromising on adaptability and ease of use. With its comprehensive set of features and accessories, it stands ready to meet diverse operational demands.
