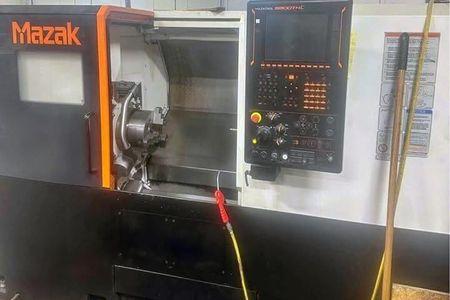

This 2007 MAZAK QTN200-IIM is equipped with a Chip Conveyor and Tailstock, adding notable efficiency to its operation. This machine offers substantial versatility and is well-suited for various machining tasks.
While used, i...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
Bar Capacity: 2.5"
Chuck Size: Collet
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 7.5"
Z Axis Travel: 21.12"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 21.28"
Max Swing: 24"
Swing over cross slide: 14"
Machine Dimensions: 99.6"x70.1"x72.4"
Machine Weight: 10,803 lbs.
Chuck Size: Collet
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 7.5"
Z Axis Travel: 21.12"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 21.28"
Max Swing: 24"
Swing over cross slide: 14"
Machine Dimensions: 99.6"x70.1"x72.4"
Machine Weight: 10,803 lbs.
Options:
Mazatrol Matrix Nexus
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Automatic Tool Eye
Rigid Tapping
G54.1
EIA/ISO
Geometric Scaling
Programmable Tailstock
Tilted Work Plane
Pitch Error Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
213 PSI High-Pressure Coolant System
Mist Collector
Thread
Inverse Time
Polar Coordinate Input
Tooling
Jib Crane
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Automatic Tool Eye
Rigid Tapping
G54.1
EIA/ISO
Geometric Scaling
Programmable Tailstock
Tilted Work Plane
Pitch Error Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
213 PSI High-Pressure Coolant System
Mist Collector
Thread
Inverse Time
Polar Coordinate Input
Tooling
Jib Crane
