Machine Overview

Specs:
CNC Control yes
Type of CNC Control MAZATROL SMOOTH G
Maximum Swing 26.5"
Max Turning Diameter 14.75"
Main Spindle Bore/Max Bar Capacity 3.5"/ 3.15
Maximum Swing Over Cross Slide 26.5"
X-Axis Travel (X1, X2, X3) 9"
Z-Axis Travel (Z1, Z2, Z3) 22.75"
Y-Axis Travel (Y1, Y2, Y3) 4" (+/- 2")
C-Axis Indexing (1, 2) .0001 Degree
Main Spindle Chuck Size 10"
Main Spindle Chuck Type Hydraulic
Main Spindle Bore Diameter 3.5"
Main Spindle Maximum Bar Work 3.15"
Main Spindle Speed 4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS) 35
Turret Tool Positions 1, 2 12
Turret Rotary Tool Spindle Speed 1, 2 6000
Turret Rotary Tool Horse Power 1, 2 10
Milling Spindle Synchronous Tapping Yes
Tool Eye Automatic Front Spindle Yes
Machine Weight 12,000 Lbs
Equipped With:Live ToolHigh Pressure CoolantChip ConveyorTailstockTool PresetterMazak Smooth CNC3 Jaw Chuck
Options:
Live Tooling
Y Axis
Description:

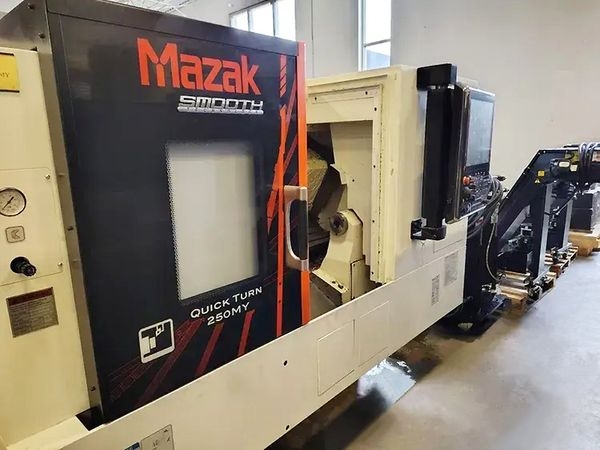

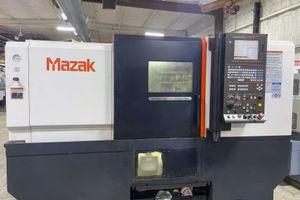

This 2020 MAZAK QTN250MY 20in is a high-performance CNC lathe that delivers impressive machining capabilities for various production tasks. Featuring the MAZATROL SMOOTH G CNC control system, it ensures fast and intuitive operation for intricate tasks.

With a maximum swing of 26.5 inches and a turning diameter of up to 14.75 inches, the machine is well-suited for handling large and complex workpieces. The main spindle has a bore diameter of 3.5 inches and can manage a max bar capacity of 3.15 inches, making it highly adaptable for diverse machining needs.

The machine's main spindle features a hydraulic chuck that measures 10 inches, enabling it to operate efficiently at speeds of up to 4,000 RPM. The continuous horsepower is rated at 35, supporting various turning operations with ease. The X-axis travel is 9 inches, while the Z-axis travel extends to 22.75 inches. The system offers a Y-axis travel of 4 inches (+/- 2"), which helps with more intricate tasks.

The MAZAK QTN250MY is equipped with a C-axis indexing capacity of .0001 degrees, facilitating detailed and precise operations. The turret accommodates 12 tool positions and operates with a rotary tool spindle speed of up to 6000 RPM, powered by a 10-horsepower motor.

Additional features include live tool capability, high-pressure coolant for maintaining optimal temperatures, and a chip conveyor to keep the workspace clean. The machine also has a tailstock for better workpiece support and a tool presetter that simplifies the setup process.

Weighing 12,000 lbs, this CNC lathe includes the Mazak Smooth CNC for enhanced processing speed and control. The unit comes equipped with a 3-jaw chuck for secure work holding, offering a complete package for professional machining requirements.
