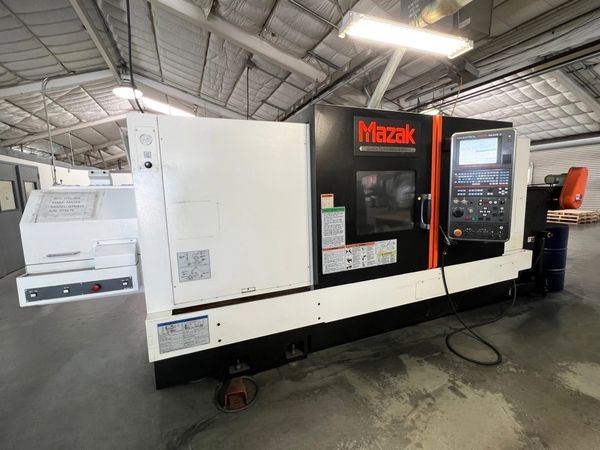

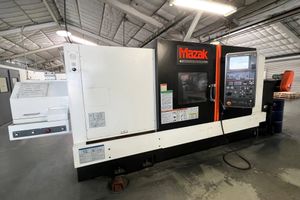

MAZAK QTN450 40IN AI Chat
Loading ...

Machine Overview

Specs:
Chuck size: 18?
Bar capacity: 7.3?
Maximum turning diameter: 22.83?
Maximum turning length: 38.54?
Machine travels (x z): 12.2? x 42.12?
Maximum spindle speed: 2,000 RPM
Spindle nose: A2-15
Spindle motor: 50HP
Turret configuration: 12 Tools Bidirectional
Electrical requirements: 220V/3Phz/60Hz/27kVA

Equipped with:
18? 3-Jaw Hydraulic Thru-Hole Chuck
12D/24 Position Drum Turret
Programmable Tailstock
Tailstock Thrust Select (9-Level)
Large Spindle Bore
Tool Eye
High-Power Coolant (520W) (59 PSI, 16 GPM)
Work Light
Intelligent Safety Shield

Mazatrol Matrix II Nexus CNC Control
** Control Features
Windows XP Operating System
12.1? Color LCD
USB I/F (2-PORT)
Lan Port
MT Connect Preparation
User Macros
EIA/ISO Input Function
Background Tool Path Check
Thread Cutting Function
Polar Coordinates Input (G122)
Velocity and Feedrate Control
Mazak Voice Adviser
Virtual Machining

OPTIONAL EQUIPMENT INCLUDED:
Re-Threading
Thread Start Point Compensation
Jorgensen Chip Conveyor – Side 1000U

Machine dimensions: 159? x 90?
Machine weight: 20,420 lbs
Options:
Mazatrol Matrix 2 Control
Chip Conveyor
Tool Presetter
Tailstock
Description:

This 2016 MAZAK QTN450 40in is a solid choice for anyone seeking a trustworthy lathe. It comes with several useful features that enhance its capabilities and performance.

Equipped with a chip conveyor, this machine ensures that chips produced during the cutting process are effectively removed, helping to maintain a tidy working environment and improve productivity. The tool presetter included in this unit allows operators to set up tools more easily, reducing setup time and errors during production.

Another valuable addition to this lathe is the tailstock, which provides support for long workpieces, allowing for more accurate and stable operations. These features collectively contribute to the machine's overall functionality and usability.

This MAZAK, manufactured in 2016, retains its strong build and efficient performance even after years of use, making it a worthy investment for your machining operations. The features mentioned offer added convenience, making your processes smoother and more manageable.
