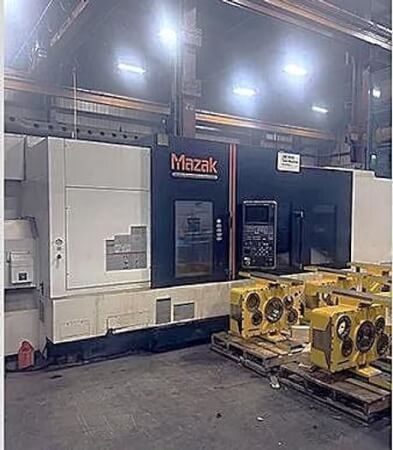

2012 MAZAK QTN450-IIMY

This 2012 MAZAK QTN450-IIMY is a highly capable machine tool in the used market, providing a range of features suitable for various machining needs. It comes equipped with essential options such as a Chip Conveyor, Tailstock, and Y Axis, which enhance its operational capabilities.

This machine is in used condition and is identified by Stock Number: 119783. It is operated via the Mazatrol Matrix Nexus 2 Control, ensuring user-friendly interaction. The machine features a 17.5" Hydraulic Chuck that facilitates secure workholding during operations. Its maximum swing capacity is 29.5", with a maximum swing over cross slide of 22.835".

With a maximum cutting diameter and length of 22.835" and 122.6" respectively, this model is suitable for handling sizeable jobs. Its bar capacity extends to 4.5", providing significant flexibility. The X-Axis offers a travel of 13.3758", while the Y-Axis supports +/- 5.91" travel, and the Z-Axis offers a length of 123.25".

The spindle system is noteworthy, featuring an A2-11" spindle nose and a 5" spindle bore, capable of operating at speeds up to 2,000 RPM powered by a 50 HP motor. For rotary tools, the speed reaches up to 4,000 RPM, driven by a 10 HP motor. The machine holds a 12 station turret to manage various tooling needs.

Both X and Z axes boast rapid traverse rates of 1181 IPM and 1299 IPM, respectively. The tailstock extends with a body travel of 113.4" and a quill diameter of 3.94", fitted with a MT #5 center. The machine's structure and design accommodate a weight of 47,888 lbs.

The listing includes a 17.5" 3 Jaw Hydraulic Chuck with a 4.5" through-hole, highlighting its versatile capabilities as a long bed machine. It supports full C Axis spindle rotation, with milling and drilling functions further increasing its usability. Additional features include a hydraulic steady rest, automatic tool eye, programmable tailstock, and synchronous tapping.

This machine is sold with a complete set of available manuals and tooling, which includes six live tool holders. The machine has recorded less than 15,000 cutting hours, promising significant operational life for future machining tasks.
