Seller Needs:
$84,500|
499
|
2

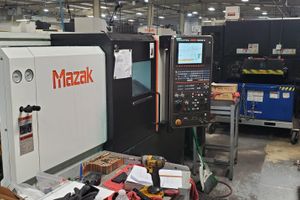

This 2015 MAZAK QTU250MS CNC Lathe is up for sale. Made for high-grade work, the machine is fully operational and remains in good state. The machine has had minimal use, allowing for low wear and tear, and comes with a winnin...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.25"
Z Axis Travel: 23.75"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.5"
Max Turning Length: 27"
Max Swing: 27.4"
Standard Machining Diameter: 8.35”
Max Support Weight (Chuck Work/Shaft Work): 990 / 1,100 LBS
Spindle Nose: A2-6
Spindle Torque (Max): 123 FT/LBS
2nd Spindle Speed (40%ED): 6,000 RPM / 10HP
2nd Spindle Nose: A2-5
Milling Spindle: 4,500 RPM
Milling Spindle (25%ED): 5HP
Dimensions: 102.4" x 66.5" x 67.9"
Weight: 12,260 LBS
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.25"
Z Axis Travel: 23.75"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.5"
Max Turning Length: 27"
Max Swing: 27.4"
Standard Machining Diameter: 8.35”
Max Support Weight (Chuck Work/Shaft Work): 990 / 1,100 LBS
Spindle Nose: A2-6
Spindle Torque (Max): 123 FT/LBS
2nd Spindle Speed (40%ED): 6,000 RPM / 10HP
2nd Spindle Nose: A2-5
Milling Spindle: 4,500 RPM
Milling Spindle (25%ED): 5HP
Dimensions: 102.4" x 66.5" x 67.9"
Weight: 12,260 LBS
Options:
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
MAZATROL MATRIX NEXUS 2 CONTROL
12.1" COLOR LCD
LAN PORT
USB I/F (2-PORT)
EIA/ISO INPUT FUNCTION (MXN-001MT)
USER MACRO (COMMON VARIABLES: 600 PAIRS) (MXN-036MT)
2ND SPINDLE C-AXIS .0001 DEG. INCLUDING EIA INPUT FUNCTION
12 POSITION DRUM TURRET (BOLT ON TYPE)
AUTOMATIC CHUCK JAWS OPEN/CLOSE
CHUCK OPEN/CLOSE CONFIRMATION
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
The following EIA/ISO functions are included:
* SPIRAL INTERPOLATION (EIA)(G02.1/G03.1)
* PATTERN ROTATION (EIA)
* 3 DIMENSIONAL CUTTER COMPENSATION (EIA)
* GEOMETRIC COMMAND (EIA)
* SCALING (EIA)(G50/G51)
* EXTERNAL DATA INPUT / OUTPUT (EIA)
POLAR COORDINATES INPUT (G122) (EIA)
THREAD CUTTING FUNCTION (G33)
MILLING-SPINDLE SYNCHRONOUS TAPPING
RELOCATION DEVICE
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
8" Hydraulic Chuck (1ST SPINDLE)
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
MAZATROL MATRIX NEXUS 2 CONTROL
12.1" COLOR LCD
LAN PORT
USB I/F (2-PORT)
EIA/ISO INPUT FUNCTION (MXN-001MT)
USER MACRO (COMMON VARIABLES: 600 PAIRS) (MXN-036MT)
2ND SPINDLE C-AXIS .0001 DEG. INCLUDING EIA INPUT FUNCTION
12 POSITION DRUM TURRET (BOLT ON TYPE)
AUTOMATIC CHUCK JAWS OPEN/CLOSE
CHUCK OPEN/CLOSE CONFIRMATION
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
The following EIA/ISO functions are included:
* SPIRAL INTERPOLATION (EIA)(G02.1/G03.1)
* PATTERN ROTATION (EIA)
* 3 DIMENSIONAL CUTTER COMPENSATION (EIA)
* GEOMETRIC COMMAND (EIA)
* SCALING (EIA)(G50/G51)
* EXTERNAL DATA INPUT / OUTPUT (EIA)
POLAR COORDINATES INPUT (G122) (EIA)
THREAD CUTTING FUNCTION (G33)
MILLING-SPINDLE SYNCHRONOUS TAPPING
RELOCATION DEVICE
EIA Herical Tap Cycle
EIA Pattern Cycle
Tilted Working Plane
8" Hydraulic Chuck (1ST SPINDLE)
Seller:
TomK792
Location:
OK
