Machine Overview

Specs:
Bar Capacity: 2.5"
Chuck Size: 10"
Spindle Speed: 1,203,000 RPM
Spindle Motor: 10 HP
Max Swing: 20.9"
Swing Over Carriage: 15.74in
Max Machining Diameter: 11.75in
Max Distance Between Spindles: 34.25in
Max Bar Work Diameter: 2.51in
X-Axis Stroke: 7.125in
Z-Axis Stroke: 22.75in
Spindle Nose: A2-6
Spindle Bore: 2.99in
Second Headstock Rapid Traverse Rate: 708IPM
Turret Type: Dodecagonal Drum Turret
Tool Capacity: 12
Boring Bar Shank Diameter: 1.50in
Turret Indexing Time (Chip-to-chip): 1.6 sec/step
Rapid Traverse Rate (X,Z): 1,180IPM
Jog Feedrate (X,Z): 0.04 ~ 78.74IPM
Rotary Tool Motor: 10 min rating
Floor Space Requirement: 124.4 x 63.4in
Control: Mazatrol T-Plus
Sub-Spindle Speed: 4000 RPM
Milling Spindle Speed: 3000 RPM
B Axis Travel: 24.5" / 23.25"
Y Axis Travel: +/- 2.0"
Spindle Indexing: 0.001 Degree
Sub Spindle Motor: 10 HP
Milling Spindle Motor: 5 HP

Options:
Mazatrol T-Plus
Bar Feeder
Parts Catcher
Sub Spindle
Y Axis
Description:

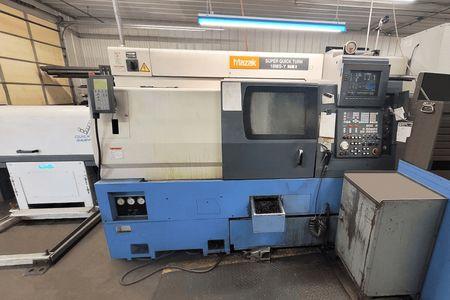

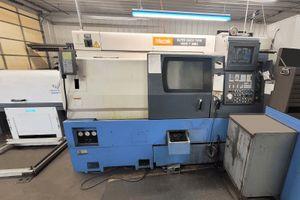

This 1997 MAZAK SQT18MSY is available for sale. It comes equipped with several options that enhance its capabilities: a Bar Feeder, Parts Catcher, Sub Spindle, and Y Axis.

The used 1997 Mazak Super Quick Turn 18 MSY includes key features such as a Collet Chuck on the main spindle, a Sub-spindle for more operations, and Milling capabilities that provide versatility. It also has a Y Axis, which allows for additional movement, and an LNS Bar Feeder that aids in the loading process.

Additionally, the machine is outfitted with an Automatic Parts Catcher, reducing the need for manual handling. You will find Spindle Liners and Extra Collets included, along with a full set of manuals for guidance. Both Static Tool Holders and Live Tool Holders are part of this package, offering diverse tooling options.

This machine is in use every day, demonstrating its capability and readiness to perform. We are selling because a new machine is on order, expected to arrive on June 1st.

The price is set at $10,000, which includes loading onto your truck for transportation.
