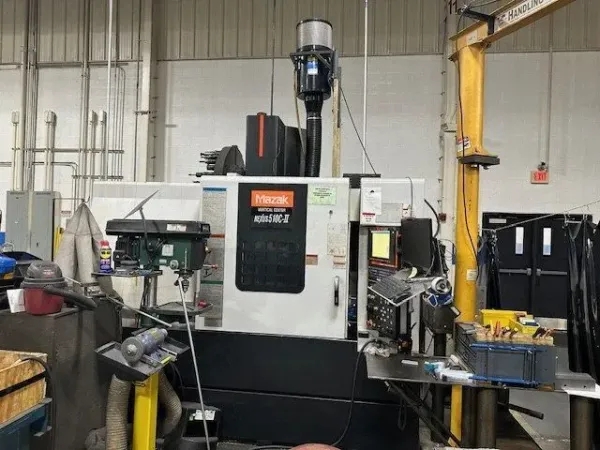

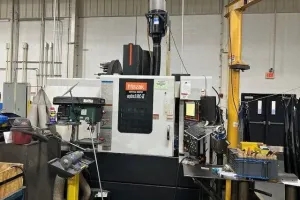

2009 MAZAK VCN510C-II

Table Size: 51.1" x 21.5"
X Travel: 41"
Y Travel: 20"
Z Travel: 20"
Spindle Nose To Table Top: 5.9" ~ 25.98"
Spindle Speed: 12,000 rpm
Spindle Motor: 25 hp
Spindle Taper: CAT 40
Tool Changer Stations: 30 + 1

EQUIPPED WITH:
Mazatrol Matrix Nexus CNC Control
Renishaw TS27 Tool Probe
Auto Tool Length Measurement
Mazak Thru Spindle Coolant
Mazak Hi Pressure Coolant (213 PSI)
Chip Conveyor


COMPARISON STOP, G54.1, SYNC MILL TAP,
VARIABLE 600 MACRO
DRILL PRESS
EIA HELICAL TAP CYCLE
EIA PATTER CYCLE,
TILTED WORK PLANE
EIA, SPIRAL,
EIA 3D COMP, ROTATION, GEOMETRIC SCALING, EXT-DATA I/O
ETHERNET PORT
JIB CRANE
MIST COLLECT SYSTEM
PEDESTAL GRINDER
PITCH ERROR COMP.
THREAD, INVERSE TIME, AUTO ATLM,
POLAR COORDINATE INPUT
ALL AVAILABLE MANUALS

DRILLS INSERTS, TOOLING
3 KURT VICES
30 CAT 40 TOOL HOLDERS

Mazatrol Matrix Nexus 2
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
Renishaw TS27 Tool Probe
Thru Spindle Coolant
Mist Collection System
Tool Package Included
