Seller Needs:
$82,500|
823
|
0

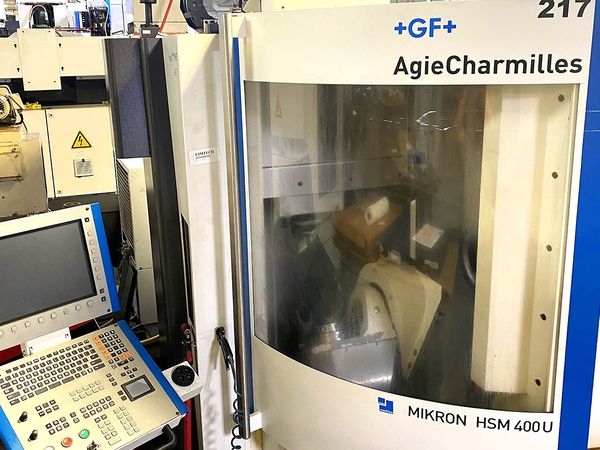

Pre-owned MIKRON HSM400U 2008 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Heidenhain control. This CNC Machine is currently located in Illinois. This MIKRON Vertic...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 15.75"
Y Axis Travel: 9.45"
Z Axis Travel: 13.78"
Spindle Motor: 15 HP
Spindle Speed: 42,000 RPM
Tool Changer: 36 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Rotary Table Diameter: 6.14?
A Axis: +110° – 110° ( Table Tilt )
C Axis: 360° (0.001°) ( Table Rotate )
Taper Size: HSK E40
Max Tool Size: 4"
Max Tool Weight: 22 lbs.
Table Size: 9.05" x 9.05"
Dimensions: 126" x 114" x 118"
Weight: 12,125 LBS
Max Table Load: 55 LBS
Air Required: 80 psi, 4 scfm
Power: 15Kw / 400v / 3-Phase
Y Axis Travel: 9.45"
Z Axis Travel: 13.78"
Spindle Motor: 15 HP
Spindle Speed: 42,000 RPM
Tool Changer: 36 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Rotary Table Diameter: 6.14?
A Axis: +110° – 110° ( Table Tilt )
C Axis: 360° (0.001°) ( Table Rotate )
Taper Size: HSK E40
Max Tool Size: 4"
Max Tool Weight: 22 lbs.
Table Size: 9.05" x 9.05"
Dimensions: 126" x 114" x 118"
Weight: 12,125 LBS
Max Table Load: 55 LBS
Air Required: 80 psi, 4 scfm
Power: 15Kw / 400v / 3-Phase
Options:
Heidenhain
Chip Conveyor
5 Axis
42,000 RPM Spindle
3R EROWA Chuck
Chip Conveyor
5 Axis
42,000 RPM Spindle
3R EROWA Chuck
Seller:
MarkB163
Location:
IL
