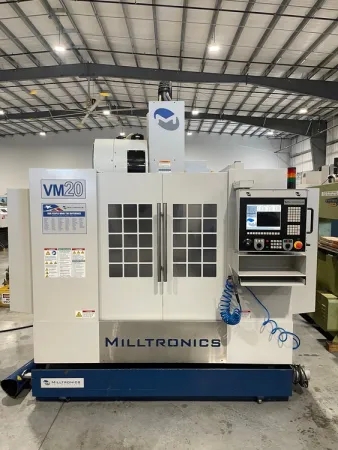

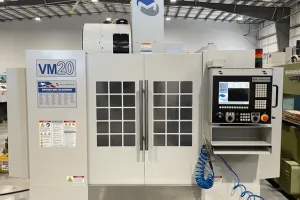

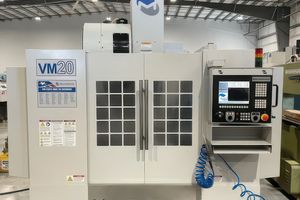

2011 MILLTRONICS VM20

Table size- 34” x 20”
Maximum table load- 2000 Lbs.
X axis travel- 40”
Y axis travel -20”
Z axis travel- 26”
Throat distance / Spindle to column- 21”
Spindle to table- 4” / 30” Min/Max
Spindle taper- CAT40
Spindle speeds- 50 – 15,000 R.P.M.
Spindle Motor - 24/15 H.P.
Tool changer- 24 tools
Tool change time- 8 seconds
X,Y,Z, Rapids- 1000 I.P.M.
Max feedrate- 500 I.P.M.

Equipped With:

Milltronics 8200 Series CNC Control
Memory stick port
Chip auger
Coolant tank 50 gallon capacity & (2) pumps
(6) Leveling pads

220 volt / 3 phase / 60 H.Z.
Machine weight- 10,000 Lbs.
Machine dimensions- 92” L x 92” W x 109” H

Machine location- F.O.B. Sarasota, Florida

Milltronics 8200-B Series CNC Control
Chip Conveyor
Programmable Coolant
Milltronics 8200 Series Control
24 + 1 ATC
Chip Auger
Dual Coolant Pumps
Memory Stick
15,000 RPM
