Seller Needs:
$44,000|
4862
|
25

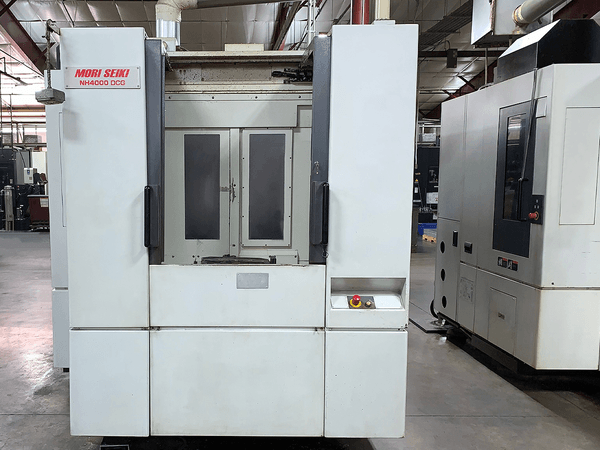

Pre-owned MORI SEIKI NH4000 2005 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc MSX-501 control. This CNC Machine is currently located in USA. This MORI SE...Read More
Seller Needs:
Payment:
Rigging:
$2,500
Specs:
X Axis Travel: 22.5"
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" X 15.75""
Max Pallet Load: 882 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 24 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Dimensions: 91" x 148" x 103"
Weight: 21,200 LBS
Y Axis Travel: 22.5"
Z Axis Travel: 24.8"
Rapid Rate X Axis: 1,968 IPM
Rapid Rate Y Axis: 1,968 IPM
Rapid Rate Z Axis: 1,968 IPM
Pallet Size: 15.75" X 15.75""
Max Pallet Load: 882 LBS
Spindle Speed: 14,000 RPM
Spindle Motor: 24 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Dimensions: 91" x 148" x 103"
Weight: 21,200 LBS
Options:
Fanuc MSX-501
Chip Conveyor
360,000 Full 4th
Thru Tool Coolant Interface
135 Gallon Coolant Capacity
Flood & Shower Coolant
Scraper Type Chip Conveyor
1 Megabyte Program Memory with 2,560 Meters
Custom Macro B
High Speed Skip
2 Pallets
Chip Conveyor
360,000 Full 4th
Thru Tool Coolant Interface
135 Gallon Coolant Capacity
Flood & Shower Coolant
Scraper Type Chip Conveyor
1 Megabyte Program Memory with 2,560 Meters
Custom Macro B
High Speed Skip
2 Pallets
