Seller Needs:
$61,000|
1176
|
1

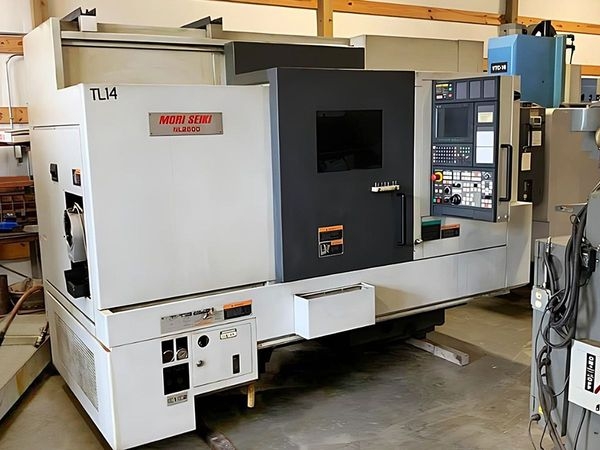

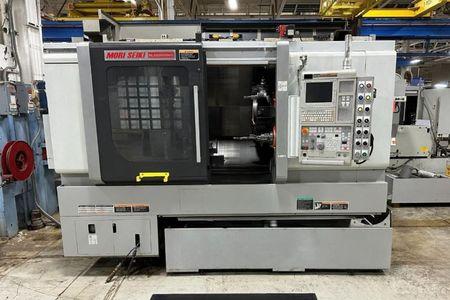

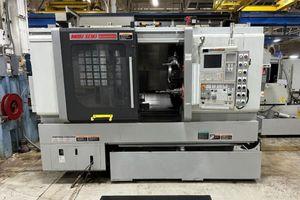

Grasp a prime opportunity to own a 2004 MORI SEIKI NL2500SMC/700 CNC Lathe. Acquiring this seasoned, yet sturdy piece of top-tier machinery will equip your work-room with the tools necessary to get jobs done with the quality ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3.1"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 10.2"
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14"
Max Turning Length: 27.7"
Max Swing: 36.4"
Swing Over Cross Slide: 29.7"
C Axis Indexing: 0.001*
Spindle Nose: A2-8
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 7.5 HP
Dimensions: 122" x 79" x 84"
Weight: 13,000 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 10.2"
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14"
Max Turning Length: 27.7"
Max Swing: 36.4"
Swing Over Cross Slide: 29.7"
C Axis Indexing: 0.001*
Spindle Nose: A2-8
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 7.5 HP
Dimensions: 122" x 79" x 84"
Weight: 13,000 LBS
Options:
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Seller:
DannA179
Location:
OK
