Machine Overview

Specs:
C-Axis:: Equipped With
Y-Axis:: Equipped With
Live Tooling / Milling:: Equipped With
B-Axis:: Equipped With
X-Travel:: 41"
Z-Travel:: 163"
Distance Between Centers:: 178"
Max Swing Over Bed:: 42"
Max Turning / Cutting Length:: 160"
Max Cutting / Turning Diameter:: 42"
Rapid Traverse:: 1576/1260 IPM
Chuck Size:: 24"
Chuck Type:: Hydraulic
Chuck Description:: 3-Jaw Hydraulic

Spindle Speed:: 1,000 RPM
Spindle Motor:: 60 HP
Spindle Nose:: A1-20
Sub-Spindle:: Equipped With
Second Chuck Size:: 24"
Second Chuck Description:: 3-Jaw Hydraulic

Second Spindle Speed:: 1,000 RPM
Second Spindle Motor:: 60 HP
Second Spindle Nose:: A1-20
Tool Positions:: 100
Turret Options:: Tooling:
- Diameter: 4.7"
- Adjacent: 9.8"
- Length: 23.6"
- Weight: 66 Lbs

Live Milling Max RPM:: 8,000 RPM
Control Make/Model:: Mori Seiki MSX-711III CNC Control
Control Options:: Helical Interpolation;Ethernet / LAN
Additional Control Options:: 5-Axis Simultaneous Control
MAPPS III Software
Data Server
640M Program Storage / 500 Registered Programs
Programmable Data Input DNC
AI Contouring Control II
Helical Interpolation Thread Cutting
Continuous Thread Cutting
Multiple Thread Cutting
Thread Cutting Retract
Polar Coordinate Interpolation
Cylindrical Interpolation
Nano Interpolation

Steadyrest Capacity:: 18"
Machine Options:: Tool Presetter;Worklight
Additional Machine Specs:: Travels:
- X2 / X3 Axis: 40.9"
- Z2 / Z3 Axis: 163.4"
- Y1 / Y2 / Y3 Axis: +/- 13"
- W-Axis: 113"
- C1 / C2 Axis Indexing: 0.0001

B-Axis Milling:
- Head Indexing: +/- 120
- Spindle Speed: 8,000 RPM
- Spindle Taper: CAPTO C8
- Spindle Motor: 40 HP

(2) SMW SLU-6-ZS Steady Rests: 18.1" Capacity
Automatic In-Machine Tool Presetter
ChipBLASTER Thru-Spindle Coolant System
Long Boring Bar Stocker (End Change Manual)
Spindle Chiller Tool Spindle

Coolant Types:: Thru-Spindle Coolant
Chip Removal:: Chip Conveyor
Options:
Chip Conveyor
Live Tooling
Sub Spindle
Y Axis
5 Axis
Description:

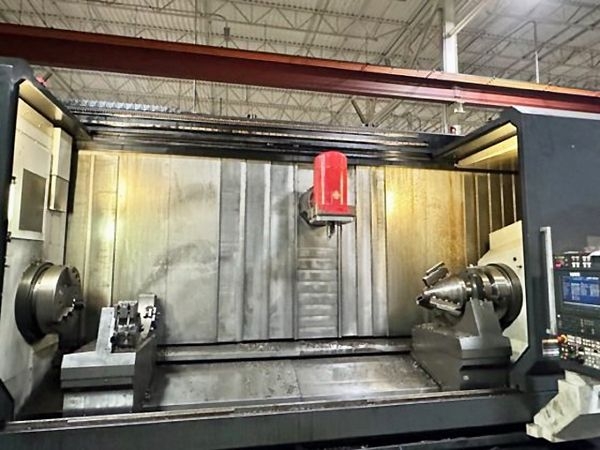

This 2009 MORI SEIKI NT6600DCG offers versatile machining capabilities, making it a valuable addition to your workshop. It includes options such as a Chip Conveyor and Y Axis, adding to the machine's usability. With features like a C-Axis, Y-Axis, and Live Tooling/Milling, the machine provides a wide range of options for various operations.

The machine comes equipped with a B-Axis and allows X-Travel up to 41 inches, and Z-Travel up to 163 inches. It offers a Distance Between Centers of 178 inches, with a Max Swing Over Bed of 42 inches. The turning length can go up to 160 inches and the turning diameter can reach 42 inches. Rapid Traverse is maintained at 1576/1260 IPM.

Both the main and sub spindle feature a 24-inch, 3-Jaw Hydraulic chuck. The spindle speed is set at 1,000 RPM with a motor of 60 HP. For added flexibility, this machine supports 100 tool positions, with turret options allowing robust operations.

The control make/model is Mori Seiki MSX-711III CNC Control. Additional control options include Helical Interpolation and Ethernet/LAN, along with 5-Axis Simultaneous Control. MAPPS III Software enhances control capabilities by offering options such as AI Contouring Control II, Helical Interpolation Thread Cutting, and more.

Machine specs also cover additional travels for X2/X3, Z2/Z3, Y1/Y2/Y3, and W-Axis, providing extra flexibility. B-Axis Milling allows for ±120-degree head indexing, with an 8,000 RPM spindle speed and 40 HP spindle motor.

Other features include two SMW SLU-6-ZS Steady Rests with an 18.1-inch capacity, an Automatic In-Machine Tool Presetter, and a ChipBLASTER Thru-Spindle Coolant System. A Long Boring Bar Stocker and Spindle Chiller add to the machine's functionality, ensuring optimal performance in various tasks.

With Through-Spindle Coolant and solid chip removal capabilities via a Chip Conveyor, this machine supports a smooth workflow in demanding machining environments. If you are looking for a machine that combines a range of control options and machining capacities, this model is a solid choice.
