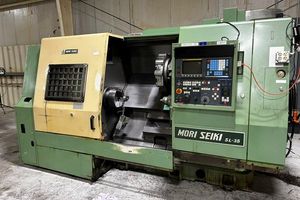

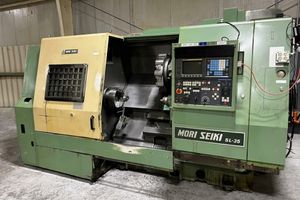

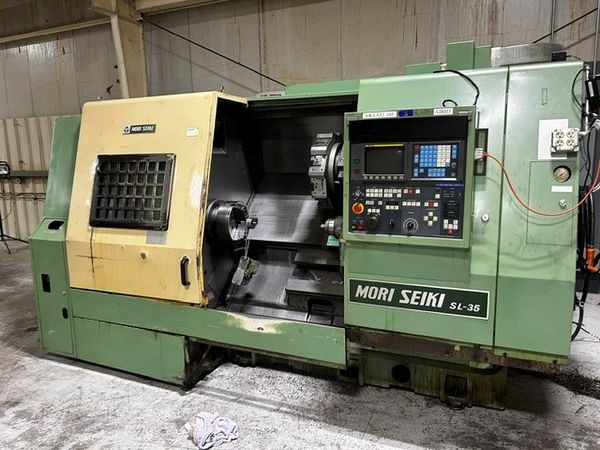

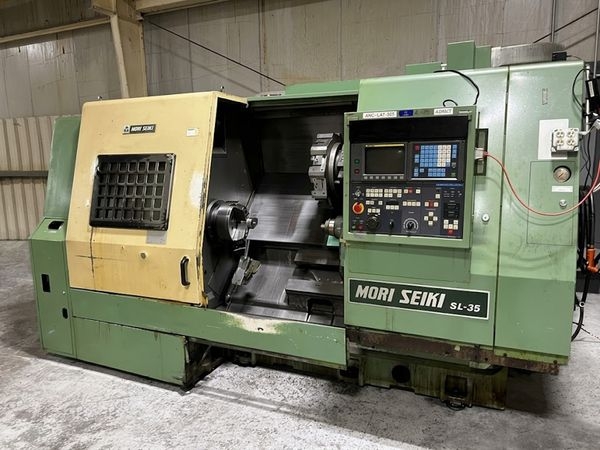

1991 MORI SEIKI SL35B

• Bar Capacity: 92 mm (3.6 in)
• Chuck Size: 12 in
• Spindle Speed: 9 – 2,500 RPM
• Spindle Motor: 30 HP (15/18.5 kVA)
• X Axis Travel: 352 mm – 457 mm (approx. 9.4 in – 13.8 in depending on configuration)
• Z Axis Travel: 558.8 mm – 855 mm (approx. 22 in – 33.7 in depending on bed length)
• Rapid Rate X Axis: 472 IPM (12 m/min)
• Rapid Rate Z Axis: 590 IPM (15 m/min)
• Turret Tools: 10
• Max Turning Dia: 420 mm – 460 mm (16.2 in – 18.1 in)
• Max Turning Length: 780 mm (30.7 in to 60.2 in depending on bed variant)
• Max Swing: 600 mm (23.6 in over bed)
• Dimensions: Approx. 142.5 in – 166 in (Length) x 62 in – 72.6 in (Width) x 69 in (Height)
• Weight: Approx. 17,600 lbs – 20,000 lbs (8,000 kg – 9,000 kg / ~4,200 kg

Chip Conveyor
Tailstock
Comes with tooling.
