Seller Needs:
$52,000|
1646
|
5

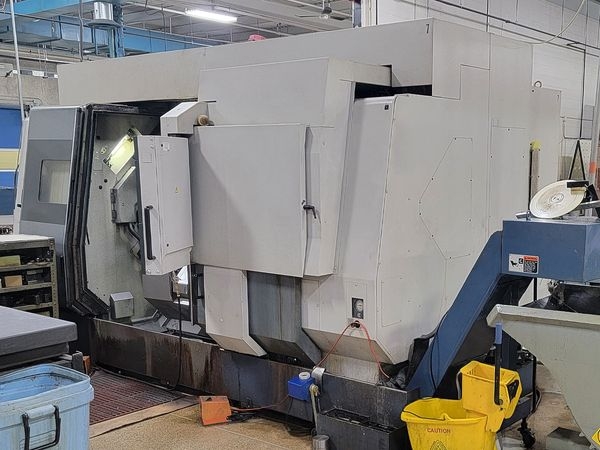

Pre-owned MORI SEIKI ZT2500Y 2001 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a MSX-501III control. This CNC Machine is currently located in USA. This MORI SEIKI CNC Lathe is available for a limite...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 12"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11"
Z Axis Travel: 37.8"
Turret Tools: 12 Station
Max Turning Dia: 15.3"
Max Turning Length: 13.7"
Max Swing: 26"
Max. Swing Over Bed: 27.7"
Max. Swing Over Cross Slide: 16.5"
Max. Distance Between Centers: 51.2"
Max. Turning Diameter: 14.1" (Secondary)
C-Axis Indexing: .001°
Spindle Bearing Inner Diameter: 5.1"
Rotary Tool Spindle Speed: 4,000 RPM
X-Axis Travel (Turret 2): 7.9"
Y-Axis Travel (Upper Turret Only): +/- 2.8"
Weight: 31,000 LBS
Chuck Size: 12"
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 11"
Z Axis Travel: 37.8"
Turret Tools: 12 Station
Max Turning Dia: 15.3"
Max Turning Length: 13.7"
Max Swing: 26"
Max. Swing Over Bed: 27.7"
Max. Swing Over Cross Slide: 16.5"
Max. Distance Between Centers: 51.2"
Max. Turning Diameter: 14.1" (Secondary)
C-Axis Indexing: .001°
Spindle Bearing Inner Diameter: 5.1"
Rotary Tool Spindle Speed: 4,000 RPM
X-Axis Travel (Turret 2): 7.9"
Y-Axis Travel (Upper Turret Only): +/- 2.8"
Weight: 31,000 LBS
Options:
MSX-501III
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
LeeD714
Location:
OH
