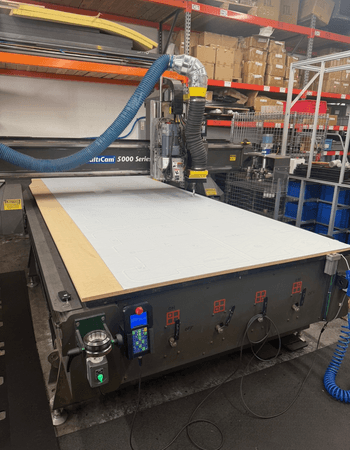

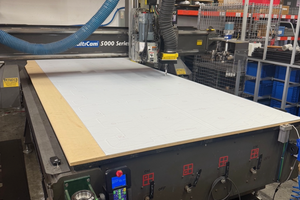

2005 MULTICAM 5000 SERIES

Condition:
Excellent working condition. Second owner. In daily production use for ~5 years with minimal issues. Machine is currently under power and available for testing.
Table Size:
5’ x 12’
Spindle:
• 16 HP Colombo air-cooled spindle
• HSK63 taper
• Up to 24,000 RPM
• Requires compressed air for spindle cooling and ATC operation
Tool Changer:
• 8-position carousel-style ATC
• Includes 8 HSK63 tool holders
• Includes starter bits
• Newer ATC forks installed (plus extras)
Z-Axis:
• Pneumatic Z-axis
• Z-axis pneumatic cylinders recently replaced
Controller / Interface:
• Newer pendant installed
• Separate control cabinet (pictured)
Vacuum & Dust Collection:
• 14 HP blower-style vacuum pump (included)
• Kufo 3 HP dust collector (included)
Additional Equipment:
• Gang drill unit included
• Currently disconnected due to air leaks at fittings
• Never used by current owner
• Likely serviceable with minor air fitting repair
Materials Previously Cut:
• HDPE
• Plywood
• Foam
• Fabric
(Light cutting only for the past ~1.5 years)
Electrical:
• Machine: 3-phase, 240V, 70A minimum circuit
• Vacuum blower: 3-phase, 240V, 50A
• Compressed air required for Z-axis and spindle/ATC
Weight:
• Approx. 6,000 lbs
Location:
• Torrance, CA

Probe
Dust Collector
Vacuum System
Hold Down
