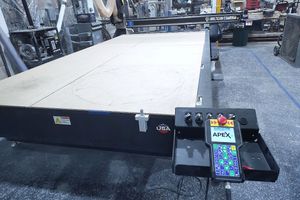

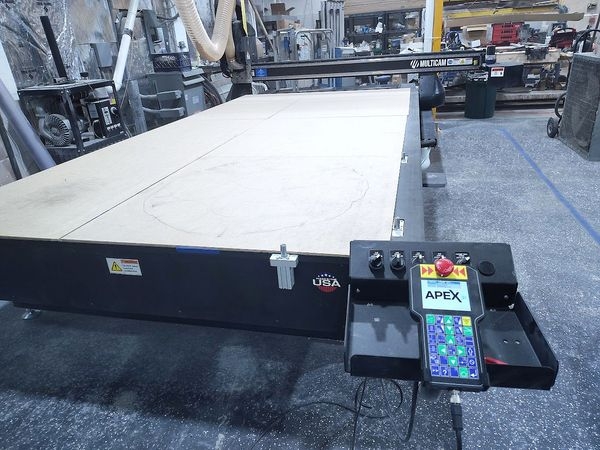

Table Size: 14' x 7' phenolic table (83" x 168" work area)
Travels & Performance
X-Axis Travel: 168"
Y-Axis Travel: 83"
Z-Axis Travel: 6"
Rapid Traverse: 2,758 IPM
Repeatability: ±0.001"
Max Material Cut Thickness:
Standard: 4"
Raised Gantry Capability: 5"
Spindle & Tooling
Umbra 8.5 HP HSK32 Pneumatic Chuck Spindle
32,000 RPM (ER25)
Water-cooled
12-Position Rotary Automatic Tool Changer (HSK32)
Full HSK32 Toolholder Set
HSK32 Stand & Wrench Kit
Plastics Starter Tool Kit
Large additional tooling bundle (ball nose, V-bits, end mills, etc.)
Construction & Drive System
All-axis servo drives
X & Y planetary gearboxes
Helical rack & pinion on X & Y
Z-axis ballscrew
Stress-relieved all-welded tube frame
Milled datums for precision
Vacuum & Dust Collection
4-Zone Pneumatic Slide Valve Vacuum Assembly
24 HP high-speed kinetic blower with VFD (580 CFM)
6.4 HP I-Vision dust collection system (3030 CFM / 11" H2O)
Dual 95-gallon bags
Quick-connect duct kit + flex hose
Software & Controls
EnRoute Pro Version 23
Surface Probe & Auto Calibration
Surface Mapping Software Module
Coreo BMO Basic Machine Operations Software
PC Workstation (rolling stand)
Units/Inches controller display
Ethernet surge protector
Additional Features
Crosshair Laser Pointer (home position reference)
Auto Misting/Lubrication System
Z-Carriage Knife-Free Kit
Locator Pins + Phenolic Front Pins
Spoilboard Cutter + Spare Spoilboard (4' x 8' x 0.5")
Main Electrical Enclosure Kit
Machine Voltage: 220/230V, 3-phase
Extensive tooling package included (full list available)
Electrical Requirements
Router system draw: 38.5 amps @ 220V 3-phase
6.4HP dust collector: 16.4 amps
24HP blower: 67 amps
Required air: 90–100 PSI
Machine SCFM: 4.3
