Machine Overview

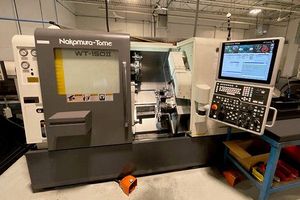

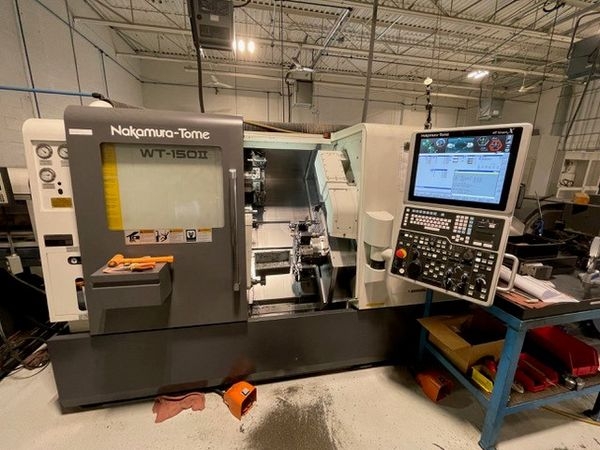

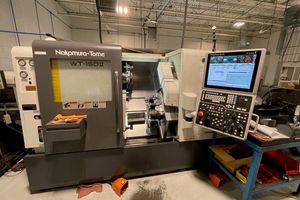

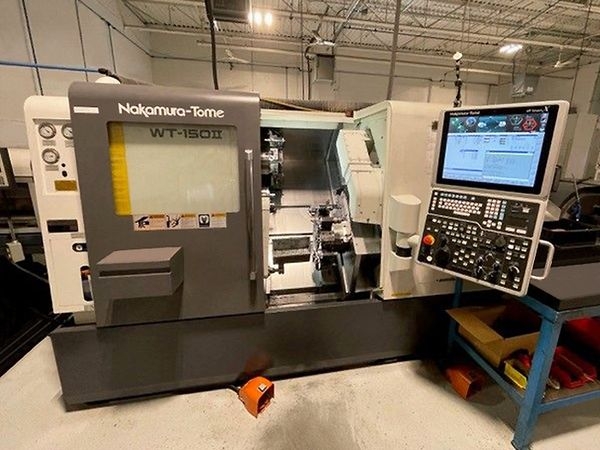

This 2017 NAKAMURA WT150 is a versatile CNC machine that comes equipped with a Tool Presetter and Bar Feeder, enhancing its productivity and ease of use.
Some critical specifications of the Nakamura WT150 include a maximum turning diameter of 7.48 inches and a turning length of up to 15.74 inches, making it suitable for diverse machining tasks. The distance between the spindle noses varies from a maximum of 29.52 inches to a minimum of 7.87 inches, providing flexibility for different machining operations.
The machine offers a bar capacity of 2.56 inches, while the left and right spindles have hole-through draw tubes measuring 2.6 inches and 2.05 inches, respectively. The spindle bore on the left is 3.15 inches, and 2.48 inches on the right, with chuck sizes at 6 inches.
This machine features a C-axis rotation on both spindles with a precision of 0.001 degrees. The left spindle operates at a speed of 4,500 RPM, powered by a 15/11 kW (20 HP) motor, while the right spindle reaches 5,000 RPM and is driven by a 11/7.5 kW (15 HP) motor.
The upper turret has 24 tool positions, with 12 live tool positions. Its upper axes travel (X/Z) is 5.61 inches by 18.30 inches, with a Y-axis travel of +/-1.38 inches. It utilizes a driven motor power of 5.5 kW (7.37 HP) and a driven tool speed of 6,000 RPM.
The lower turret also has 24 tool positions, with 12 live tool positions, and the same driven motor power and tool speed as the upper turret. Lower axes travel (X/Z) measures 6.59 inches by 18.3 inches.
Covering a floor space of 142 inches by 78 inches and weighing approximately 19,600 pounds, this machine requires a power supply of 67.2 kVA. Additionally, it includes 2 radial and 2 axial live tool holders, a 1000 psi chip blaster unit, a highly capable mist collector on top, and a detachable tool presetter.
This is an ideal solution for shops looking for a productive and adaptable CNC machine. This Nakamura WT150 offers a fusion of precision machining and practical function, ready to boost production processes. The bar feeder and turret capabilities are well-suited for a wide array of machining needs.
